AMPHENOL COMMUNICATIONS SOLUTIONS 68691100HLF Interconnect Header
The BergStik 2.54mm unshrouded headers are versatile interconnect components available in various configurations including surface-mount, through-hole, press-fit, stacking, and pin-in-paste versions. Designed in single and double rows with optional right angle or straight orientations, they feature high temperature thermoplastic housing rated UL94V-0, phosphor-bronze pins, and optional gold or tin plating over nickel finish. Suitable for PCB applications, these headers support up to 100 mating cycles, provide 3A per contact, and are compatible with multiple soldering processes, making them ideal for reliable electronic interconnections.
AMPHENOL COMMUNICATIONS SOLUTIONS 68691100HLF Interconnect Header Specifications:
- Housing: High temperature thermoplastic, Black, UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold over 1.27μm Nickel or Tin over 1.27μm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Mechanical Retention Force: 9N minimum
- Retentive Leg Insertion Force: >44.48N
- Suitable for SMT, THT, press-fit processes
- Compatible with wave, vapor-phase, and IR reflow soldering
- Available in single and double row configurations from 2 to 72 positions
- Custom sizes and configurations upon request

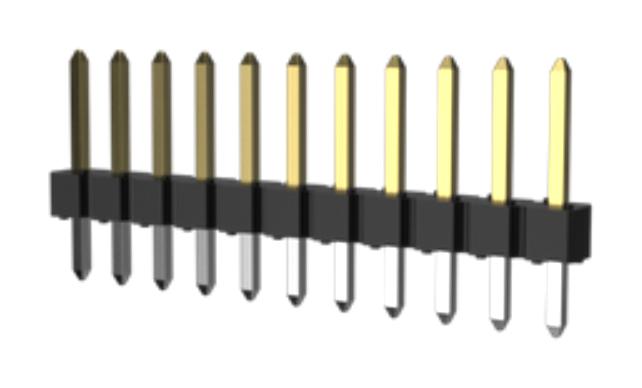

Buy the Buy FCI BergStik 2.54mm Unshrouded Headers Part Number 68691100HLF Online
Experience the high quality and versatile performance of the FCI BergStik 2.54mm unshrouded headers. Perfect for PCB assembly, these headers support multiple mounting options, including surface-mount and through-hole, with optional right angle or straight orientation. Manufactured with UL94V-0 rated thermoplastic housing, phosphor-bronze pins, and optional gold or tin plating, they ensure excellent electrical conductivity and durability. These headers are suitable for industrial, automotive, and consumer electronics, supporting up to 100 mating cycles and compatible with various soldering techniques for long-lasting, reliable connections.
Get FCI BergStik 68691100HLF today—designed for reliable PCB interconnections with high temperature resistance and excellent mating durability.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68691100HLF?
You can click on the BUY or RFQ button to purchase 68691100HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68691100HLF?
You can download the 68691100HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68691100HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
