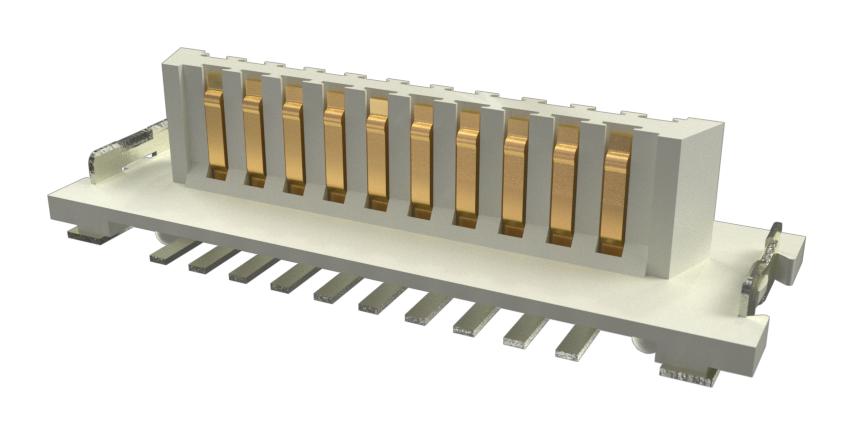

AMPHENOL COMMUNICATIONS SOLUTIONS 101625821134121LF Board-to-Board Connector
The Conan Lite 1.00mm connector by Amphenol ICC offers a high-speed, reliable board-to-board connection suitable for various electronic applications. Featuring a robust metal down feature for dependable PCB mating and an audible click to confirm connection, it supports data transmission speeds up to 8Gb/s. The connector's design includes polarized housings, protected terminals, and compatibility with auto reflow processes for ease of manufacturing. Made from high-temperature thermoplastic and copper alloy, it withstands temperatures from -55°C to +125°C, ensuring durability and performance in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 101625821134121LF Board-to-Board Connector Specifications:
- Housing Material: High-temperature thermoplastic LCP
- Terminal Base Material: Copper alloy
- Plating: Gold flash on contact area
- Current Rating: 1.0A continuous
- Contact Resistance: 30mΩ max.
- Withstanding Voltage: 500V AC RMS 60Hz
- Durability: 30 cycles
- Mating Force: 125g per contact max.
- Un-mating Force: 35g per contact min.
- Operating Temperature Range: -55°C to +125°C
- Package: Tape and Reel
- Application Areas: LED reading lights, electronic control units, servers
- Number of Positions: Available in 9, 11, 15, 21, 25, 31, 41, 51, 69 positions
- Connector Type: Vertical headers, receptacles, right angle headers
- Mating Height: 4.15-7.5mm
- Supports high-speed data transmission up to 8Gb/s
- Designed for auto reflow printing and secure mating
Buy the Amphenol Series Conan Lite 1.00mm Connector: 101625821134121LF
Purchase the Amphenol ICP Conan Lite 1.00mm connector online today to enjoy high-speed, secure, and durable connections in your electronic designs. This connector features a robust design with a high-temperature thermoplastic housing and gold-flash contacts, supporting up to 8Gb/s data transmission speeds. Its polarized housings and protected terminals ensure reliable mating, while the compatibility with auto reflow processes simplifies assembly. Suitable for LED lighting, control units, and servers, this connector guarantees durability across a wide temperature range for demanding environments.
Order your Amphenol Series Conan Lite 1.00mm Connector today and ensure high-speed, reliable connections for your electronic projects.
