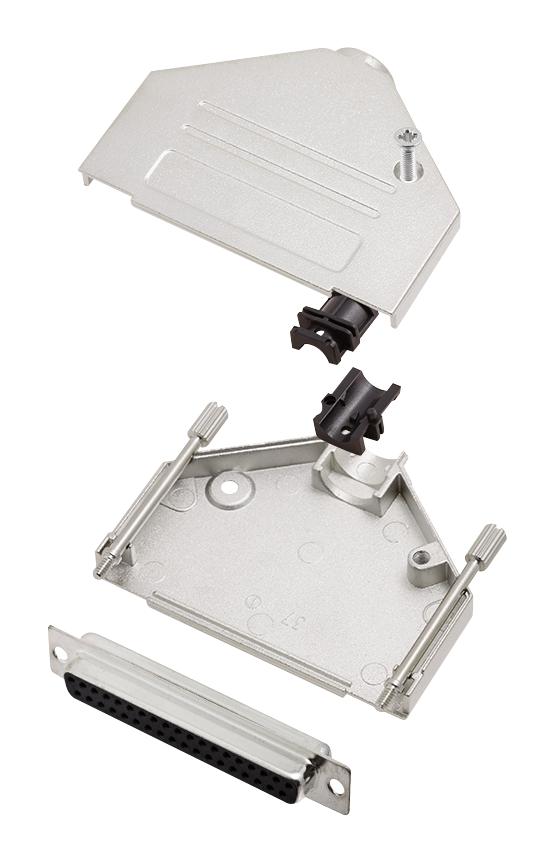

AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZK37L77SDC37S D-Sub Solder Cup Connector
The Umax D-Sub solder cup connector is a versatile, re-openable connector featuring a zinc, nickel-plated hood with a top cable entry suitable for cable diameters up to 11.5mm. It offers a glass-filled UL94 V-0 insulator, steel shell with tin plating, and copper alloy contact pins with gold flash over nickel for enhanced conductivity and corrosion resistance. Designed to operate between -40°C and +120°C, it supports voltages over 1000V RMS at 50Hz, with a current rating of 5A, making it ideal for secure, high-voltage, low-current connections in various industrial applications.
AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZK37L77SDC37S D-Sub Solder Cup Connector Specifications:
- Material: Zinc, Nickel Plated
- Operating Temperature: -40°C to +120°C
- Cable Entry: Top Entry
- Cable O.D: Up to 11.5mm
- Insulator: Glass filled TP, UL94 V-0
- Shell: Steel, Tin Plated
- Contact Pins: Copper Alloy with Gold Flash over Nickel
- Voltage Rating: Over 1000V RMS at 50Hz
- Current Rating: 5A
- Insulator Resistance: >5000MQ min.
- Operating Temp Range: -55°C to +85°C
- Re-openable, 360° EMI Shielding
- Available Sizes: 9, 15, 25, 37-way
- Grommet Sizes: DTZK
- Dimensions for 9-way: A=31.0mm, B=39.5mm, C=15.0mm
- Dimensions for 15-way: A=39.5mm, B=41.5mm, C=15.0mm
- Dimensions for 25-way: A=53.5mm, B=48.5mm, C=16.0mm
- Dimensions for 37-way: A=71.0mm, B=53.0mm, C=15.0mm
Buy the Amphenol Series D-Sub Solder Cup: L17DTZK37L77SDC37S
Purchase the high-quality D-Sub solder cup connector online today to ensure secure, corrosion-resistant, and high-voltage electrical connections. Featuring a zinc, nickel-plated hood with top cable entry, this connector supports cable diameters up to 11.5mm and operates efficiently between -40°C and +120°C. With over 1000V RMS voltage capacity, 5A current rating, gold-plated contact pins, and a glass-filled UL94 V-0 insulator, it’s ideal for industrial, automation, and control systems needing reliable connectivity. Re-openable with 360° EMI shielding for optimal performance.
Order your Amphenol Series D-Sub Solder Cup connector today and ensure reliable high-voltage connections in your industrial projects.
