AMPHENOL COMMUNICATIONS SOLUTIONS 10162688207206CLF Wire-to-Board Connector
The ComboLock® Wire-to-Board connector system offers a compact, reliable solution with hybrid power and signal capabilities, suitable for limited space applications. It features active latching and holds power from 26AWG to 18AWG wires, and signals from 30AWG to 24AWG, supporting up to 10A per power pin and 1.5A per signal pin. The connector is designed with a housing of UL 94V-0 rated PA66, crimping terminals of phosphor bronze, and provides a durable connection with up to 30 mating cycles. Compatible with vertical and right-angle PCB mounting, it ensures secure mating, increased board grip, and reliable electrical performance in automation, robotics, server, and home appliance markets.
AMPHENOL COMMUNICATIONS SOLUTIONS 10162688207206CLF Wire-to-Board Connector Specifications:
- Housing Material: PA66 UL 94V-0
- Crimping Terminal Material: Phosphor bronze alloy
- Electrical Rating: 50V AC/DC, 500VAC dielectric withstand
- Current Capacity: 10A max. per power pin, 1.5A max. per signal pin
- Wire Range: 26AWG to 18AWG for power, 30AWG to 24AWG for signal
- Mechanical Durability: 30 mating cycles
- Mating Force: Up to 8N for power, 3N for signal
- Housing Retention Force: Minimum 9.8N
- Operating Temperature: -40°C to +105°C
- Voltage Resistance: 50V AC/DC, Insulation Resistance: 100MQ
- Contact Resistance: < 40MQ

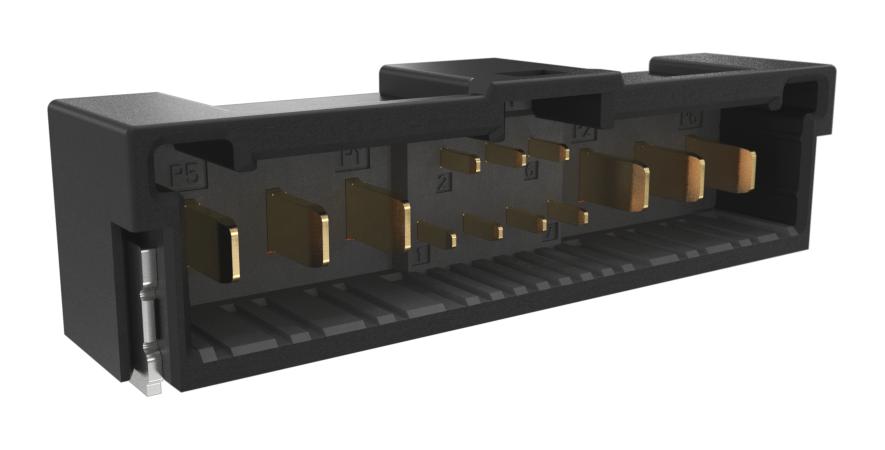

Buy the Amphenol Series ComboLock Wire-to-Board Connector: 10162688207206CLF
Secure your electrical connections with the Amphenol ComboLock wire-to-board connector, featuring hybrid power and signal capacities, robust locking, and space-saving design. Its UL-rated PA66 housing and phosphor bronze contacts ensure long-term durability and dependable electrical performance. Supporting wire sizes from 26AWG to 18AWG for power and 30AWG to 24AWG for signals, it is ideal for automation, robotics, home automation, servers, and industrial applications. Easy to mount in vertical or right-angle configurations, providing secure mating, increased grip, and reliable performance for critical systems.
Buy Amphenol 10162688207206CLF now and experience unmatched reliability and performance in compact wiring solutions.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10162688207206CLF?
You can click on the BUY or RFQ button to purchase 10162688207206CLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10162688207206CLF?
You can download the 10162688207206CLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10162688207206CLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
