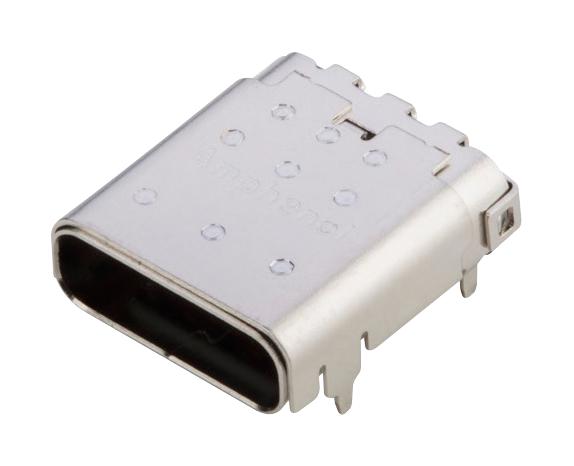

AMPHENOL COMMUNICATIONS SOLUTIONS 12401610E42A USB Type C Connector
The USB Type C connector system supports fast data transfer rates up to 10Gb/s, with a reversible design, high durability of 10,000 mating cycles, and extended power delivery of 5A. Made with high-temperature polymer housing and copper alloy contacts, it provides reliable connections for a variety of applications including mobile devices, industrial systems, and medical equipment. Its compact size, compatibility with multiple USB standards, and waterproof options make it ideal for emerging product designs that require space-saving, versatile, and durable connectivity solutions.
AMPHENOL COMMUNICATIONS SOLUTIONS 12401610E42A USB Type C Connector Specifications:
- Housing: High Temperature Polymer, UL94V-0, Black
- Contact Material: Copper Alloy
- Shell: Stainless Steel
- Insertion Force: 5N to 20N
- Extraction Force: 8N to 20N
- Durability: 10,000 mating cycles
- Contact Resistance: 40mΩ max. for VBUS, GND, and contacts
- Insulation Resistance: 100mΩ min.
- Dielectric Withstanding Voltage: 100V AC
- Material: Copper alloy contacts, stainless steel shell
- Temperature: -55°C to +105°C
- Support for USB 2.0/3.0/3.1 protocols and Power Delivery 5A
- Mechanical design includes vertical, right-angle, and waterproof variants
- Dimensions vary per model, with shell heights of 0.9mm, 2.1mm, etc.
Buy the Amphenol Series USB Type C Connector System: 12401610E42A
Purchase the USB Type C connector system 12401610E42A online today to enjoy high-speed data transmission up to 10Gb/s, extended power delivery of 5A, and proven durability of 10,000 mating cycles. Designed with a compact, reversible design, it supports a wide range of applications including mobile, industrial, and medical devices. Its waterproof options and compatibility with multiple USB protocols make it an ideal choice for emerging product designs that require space-efficient, reliable, and future-proof connectivity solutions.
Buy Amphenol USB Type C connector system 12401610E42A now and experience reliable high-speed data transfer, durable design, and versatile connectivity.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 12401610E42A?
You can click on the BUY or RFQ button to purchase 12401610E42A from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 12401610E42A?
You can download the 12401610E42A datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 12401610E42A?
AMPHENOL COMMUNICATIONS SOLUTIONS
