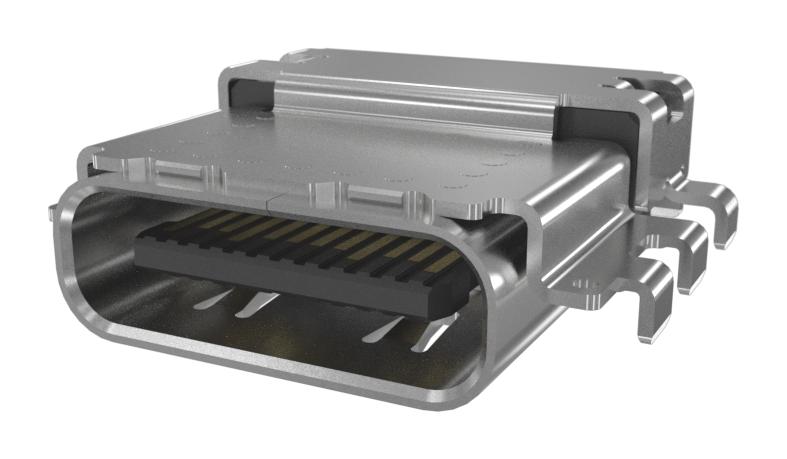

AMPHENOL COMMUNICATIONS SOLUTIONS 12402072E512A USB 4 Type C Connector
The Amphenol USB 4 Gen 3 Type C connector combines power charging, USB data transfer, PCIe data transfer, and DisplayPort video and audio capabilities in a single connector. It supports high-speed data transmission, reversible plug orientation, and is suitable for applications in storage, laptops, tablets, docking stations, peripherals, automotive infotainment, and home entertainment systems. The connector features a robust design with a copper alloy terminal, stainless steel mid plate and outer shell, and a LCP UL94-V0 housing, ensuring durability and reliable performance.
AMPHENOL COMMUNICATIONS SOLUTIONS 12402072E512A USB 4 Type C Connector Specifications:
- Power Delivery: Up to 100W
- Data Transmission Rate: Up to 40Gbps
- Housing Material: LCP UL94-V0
- Molding Housing: Black, high temperature plastic
- Terminal Material: Copper alloy
- Mid Plate Material: Stainless steel
- Outer Shell Material: Stainless steel
- Main Shell Material: Stainless steel
- Small Shell Material: Stainless steel
- Durability: 10000 cycles
- Operating Temperature Range: -40°C to +85°C
- Insertion Force: 5~20 N
- Extraction Force: 8~20 N
- Low Level Contact Resistance: 40m Ω max.
- Insulation Resistance: 100m Ω min.
- Contact Current Rating: 5A max.
- Dielectric Withstanding Voltage: 100VAC
