AMPHENOL COMMUNICATIONS SOLUTIONS HM2P09PD5110N9LF Backplane Connectors
The Millipacs® 2mm Hard Metric Series vertical header connectors are modular, high-performance backplane connectors designed for board-to-board and cable-to-board interconnections. They support IEC standards and feature various configurations, including signal, power, and coax contacts. Constructed with durable materials like copper alloy and high-temperature thermoplastics, these connectors offer excellent electrical and mechanical properties, including low contact resistance, high current capacity, and environmental resilience. Suitable for communications, data, medical, industrial, and control applications, they provide scalable options with multiple mating cycles and optional shielding for enhanced performance.
AMPHENOL COMMUNICATIONS SOLUTIONS HM2P09PD5110N9LF Backplane Connectors Specifications:
- Pitch: 2mm
- Contact Material: Copper Alloy
- Insulator Material: UL94V-0 thermoplastic or high-temperature polymer
- Contact Plating: Gold / Palladium nickel on mating area, Tin over Nickel on press-fit terminals
- Operating Current: 1.5A at 20°C, 1.0A at 70°C
- Test Voltage: 750 Vrms
- Contact Resistance: 20 mΩ max
- Insulation Resistance: 10 MΩ min
- Operating Temperature: -55°C to +125°C
- Mating Force: 0.75 N per contact
- Withdrawal Force: 0.15 N per contact
- Shock Resistance: Hertz stress 200 Kpsi min
- Misalignment Tolerance: Longitudinal +2.0mm, Transversal +2.5mm
- Inclination: ±2.0°
- Standards: IEC 917, IEC 61076-4-101, Telcordia GR-1217-CORE
- Certifications: UL, CSA recognized
- Packaging: Tray, tape and reel for pin-in-paste

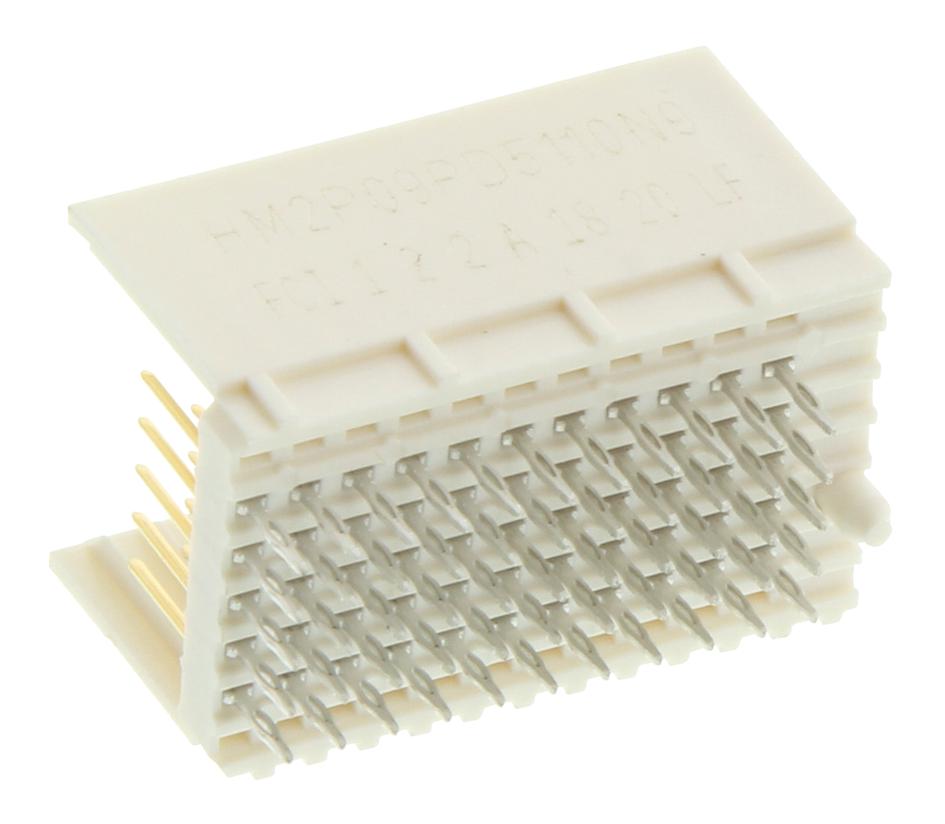

Buy the Buy FCI Millipacs 2mm Hard Metric Series Vertical Header Connectors Part Number HM2P09PD5110N9LF Online
Get your FCI Millipacs 2mm Hard Metric Series vertical header connectors online today. Designed for durable, high-speed board-to-board and cable connections suitable for communications, data, medical, and industrial applications. These connectors feature excellent electrical performance with low contact resistance, high current capacity, and temperature resilience up to 125°C. They support multiple mating cycles, optional shielding, and versatile configurations including signal, power, and coax contacts. Fast, secure ordering guarantees you reliable connectivity solutions tailored for demanding environments.
Order your FCI Millipacs 2mm Hard Metric Series HM2P09PD5110N9LF today and ensure reliable, scalable backplane connectivity for your industrial and medical projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS HM2P09PD5110N9LF?
You can click on the BUY or RFQ button to purchase HM2P09PD5110N9LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part HM2P09PD5110N9LF?
You can download the HM2P09PD5110N9LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of HM2P09PD5110N9LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
