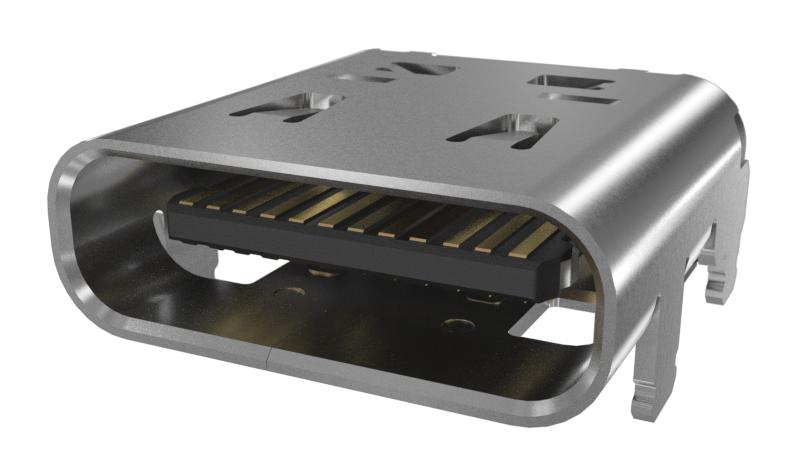

AMPHENOL COMMUNICATIONS SOLUTIONS 12402076E512A USB 4 Type C Connector
The Amphenol USB 4 Gen 3 Type C connector combines power charging, tunneling USB, PCIe data transfer, and DisplayPort video and audio capabilities in a single connector. It supports high-speed data transmission, reversible plug orientation, and is suitable for applications in storage, notebooks, tablets, docking stations, peripherals, automotive infotainment, and home entertainment. The connector features a robust design with a copper alloy terminal, stainless steel components, and a LCP UL94-V0 housing, ensuring durability and reliable performance.
AMPHENOL COMMUNICATIONS SOLUTIONS 12402076E512A USB 4 Type C Connector Specifications:
- Power Delivery: Up to 100W
- Data Transmission Rate: Up to 40Gbps
- Housing Material: LCP UL94-V0
- Terminal Material: Copper alloy
- Mid Plate Material: Stainless steel
- Shell Material: Stainless steel
- Durability: 10000 cycles
- Operating Temperature Range: -40°C to +85°C
- Contact Current Rating: 5A max.
- Insertion Force: 5~20 N
- Extraction Force: 8~20 N
- Low Level Contact Resistance: 40m Ω max.
- Insulation Resistance: 100m Ω min.
- Dielectric Withstanding Voltage: 100VAC
Buy the 12402076E512A AMPHENOL COMMUNICATIONS SOLUTIONS USB 4 Type C Connector | myMectronic
Purchase the Amphenol 12402076E512A USB 4 Type C connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 12402076E512A?
You can click on the BUY or RFQ button to purchase 12402076E512A from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 12402076E512A?
You can download the 12402076E512A datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 12402076E512A?
AMPHENOL COMMUNICATIONS SOLUTIONS
