AMPHENOL COMMUNICATIONS SOLUTIONS 47565002LF Datasheet & Stock

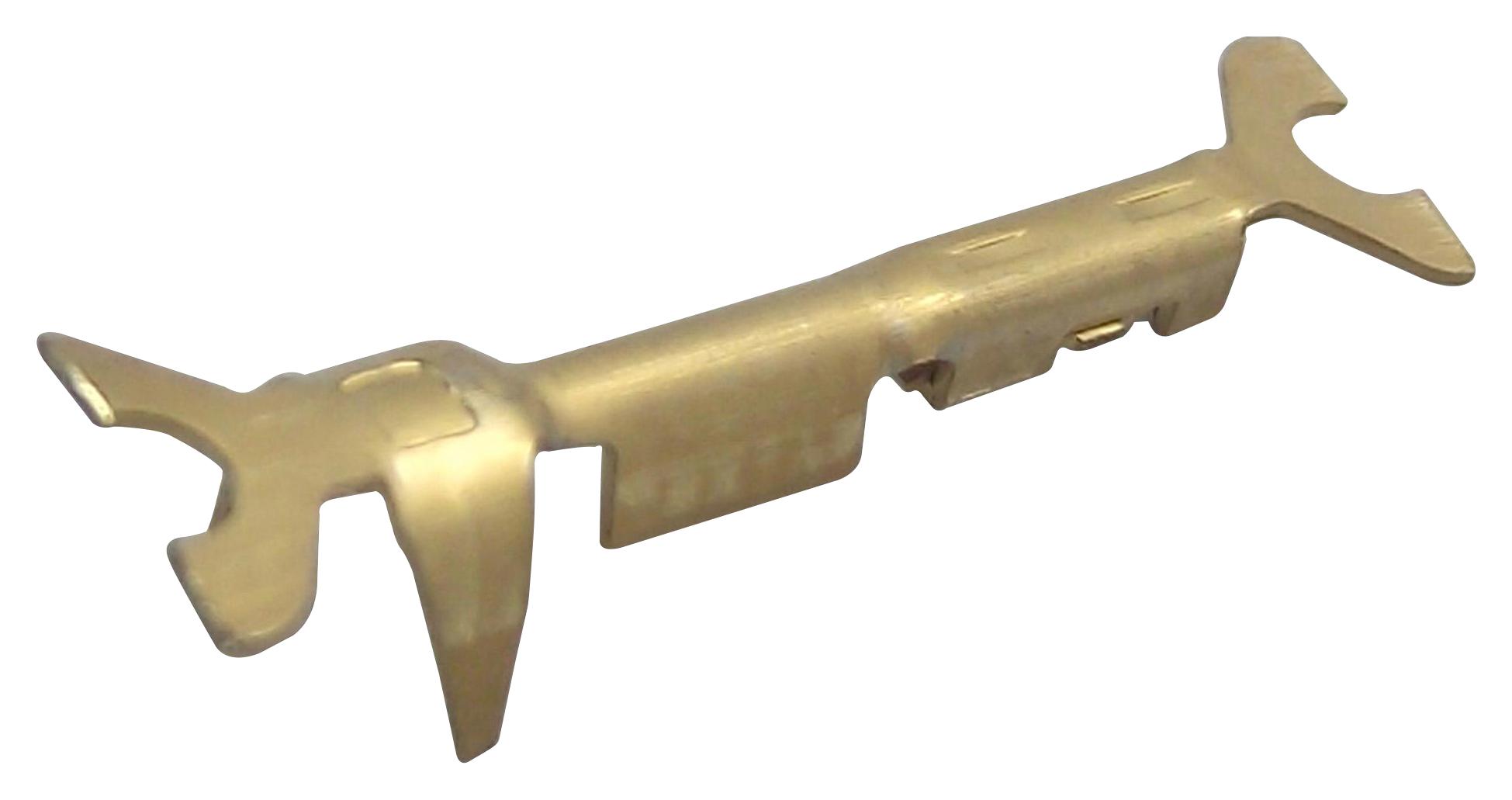

The Mini PV series high-durability and high-retention wire-to-board connector system enables reliable connections between discrete wires and printed circuit boards. It features high-reliability dual-metal receptacle terminals that plug into industry-standard 0.025-inch square posts. The system offers various containment, protection, and guidance options on both sides of the connector interface. The wire-side PV® receptacle terminals can be terminated to wires for discrete applications or inserted into multiple-circuit MINI-LATCH connector housings with optional polarizing keys. The printed circuit board side includes shrouded headers with integral friction features that grip the mating MINI-LATCH housings, reducing disengagement risk. The connector provides three spring pressure options to customize insertion and withdrawal forces for different applications. The unique dual-metal PV® receptacle contacts maintain consistent contact pressure over 1000 mating cycles. Beryllium copper springs generate high normal force at the mating interface, while brass contact bodies produce gas-tight, reliable crimps. MINI-LATCH housings securely retain the PV® wire contacts and are available in single or double-row configurations. Polarized, keyed housings and header keyways prevent mis-mating, and a two-wall header design offers mechanical benefits and cost efficiency. Designed for durability and a wide temperature range of -40°C to 105°C, this connector is suitable for various applications including consumer electronics, sensing and instrumentation, medical devices, defense and aerospace, communications and networking, and industrial systems.

View 47565002LFDatasheet [pdf]
