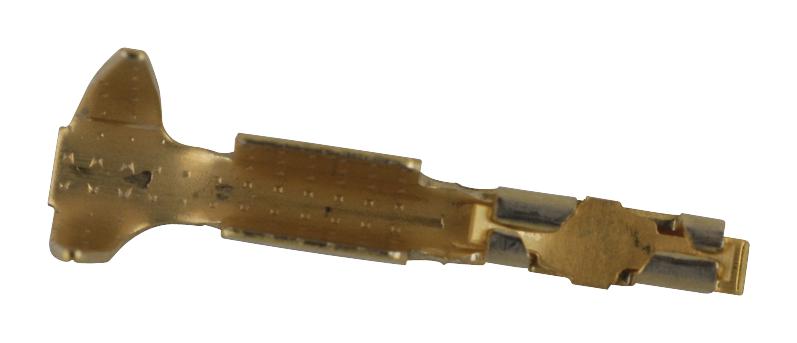

AMPHENOL COMMUNICATIONS SOLUTIONS 48234002LF Wire-to-Board Connectors
The PV wire-to-board connector system offers high reliability and durability with dual-metal receptacle contacts that maintain contact pressure over 1000 mating cycles. Its unique design features brass and beryllium copper springs, ensuring gas-tight crimps and secure connections. Suitable for industrial, medical, automotive, and communication applications, these connectors support multiple configurations, including single and double rows, with polarized MINI-LATCH housings for proper mating. They feature gold or pure tin plating, robust materials, and supply tools for efficient assembly, providing a reliable solution for electronic device wiring needs.
AMPHENOL COMMUNICATIONS SOLUTIONS 48234002LF Wire-to-Board Connectors Specifications:
- Contact material: Brass body, beryllium copper spring
- Plating options: Gold or pure tin over nickel
- Housing material: Modified polyphenylene oxide UL94V-0, glass-filled nylon UL94V-0
- Current rating: 3.0A with 32 AWG wire, de-rated for larger wires
- Withstanding voltage: 1000V RMS
- Insulation resistance: >10000MQ (wire connector), >5000MQ (header)
- Contact resistance: <2mQ
- Un-mating force: 75g (ultra-high spring), 175g (high spring)
- Mating force: 450g (high spring), 100g (ultra-high spring)
- Temperature range: -40°C to +105°C
- Durability: 1000 cycles
- Applicable to wire sizes: 18-36 AWG, maximum wire diameter 1.52mm
- Certifications: URE66906, CSALR46923
Buy the Buy FCI PV Wire-to-Board Part Number 48234002LF Online
Purchase the FCI PV wire-to-board connector system online today for a reliable and durable connection solution suitable for industrial, medical, automotive, and communication applications. Featuring dual-metal contacts, polarization, and various configurations, these connectors support high cycle durability and excellent electrical performance. Compatibility with wire sizes up to 36 AWG, low contact resistance, and robust materials make these connectors ideal for critical electronic wiring tasks. Buy now and experience dependable performance and easy assembly with professional tools designed for efficient installation.
Buy FCI PV wire-to-board connector system now and ensure high reliability and secure connections in industrial, medical, and automotive electronics.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 48234002LF?
You can click on the BUY or RFQ button to purchase 48234002LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 48234002LF?
You can download the 48234002LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 48234002LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
