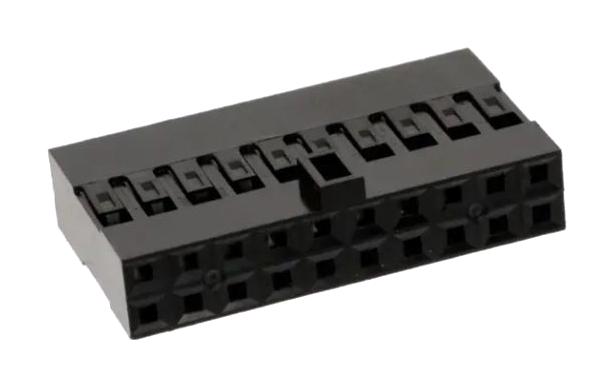

AMPHENOL COMMUNICATIONS SOLUTIONS 69176022LF Wire-to-Board Connector
The PV Wire-to-Board Connector System by Amphenol ICC is a modular, high-performance solution designed for demanding electronic applications. It features dual-metal PV receptacle contacts, robust beryllium copper springs, and polarized MINI-LATCH housings to prevent mismating. Suitable for automotive, industrial, medical, and data systems, it offers up to 1000 mating cycles, high current ratings of 3.0A, and withstands voltages up to 1000V RMS. Made with RoHS-compliant materials, it ensures reliable, gas-tight crimps and mechanical durability in harsh environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 69176022LF Wire-to-Board Connector Specifications:
- Contact Material: Brass body, beryllium copper spring
- Contact Plating: Gold or lead-free tin over nickel
- Housing Material: Modified polyphenylene oxide UL94V-0, glass filled nylon UL94V-0
- Temperature Range: -40°C to +105°C
- Current Rating: 3.0A per circuit with 32 AWG wire
- Withstanding Voltage: 1000V RMS
- Insulation Resistance: >10000MQ for wire connector, >5000MQ for PCB header
- Contact Resistance: <2mQ
- Durability: Up to 1000 mating cycles
- Size Range: 3 to 72 positions depending on series
- Approvals: UL (E66906), CSA (LR46923)
- Wire Compatibility: Up to 152mm diameter wire, various spring pressures available
- Additional features: polarized, shrouded headers, gas-tight reliable crimps
Buy the Buy Amphenol PV Wire-to-Board Connector Part Number 69176022LF Online
Secure your electronic projects with the Amphenol PV Wire-to-Board Connector system, offering high durability, precise polarization, and RoHS compliance. This versatile connector features dual-metal contacts, robust materials, and up to 1000 mating cycles, making it ideal for automotive, industrial, and medical applications. Easy to install with gas-tight crimps, it supports a range of wire sizes and configurations. Purchase online to ensure reliable electrical connections, superior mechanical stability, and compliance with environmental standards, standard for demanding electronic assemblies.
Buy Amphenol 69176022LF now and experience unmatched reliability and high-performance electrical connections for demanding applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 69176022LF?
You can click on the BUY or RFQ button to purchase 69176022LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 69176022LF?
You can download the 69176022LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 69176022LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
