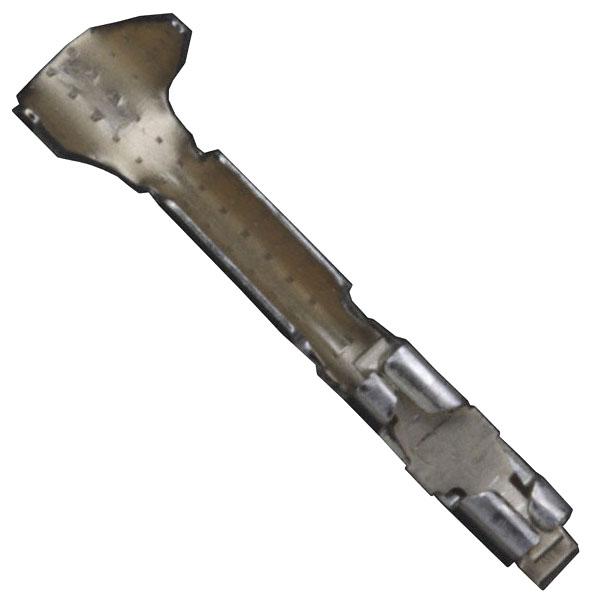

AMPHENOL COMMUNICATIONS SOLUTIONS 48239000LF wire-to-board connector

The Mini PV series high-durability and high-retention Wire-to-Board Connector System is designed to connect discrete wires to printed circuit boards (PCBs). It features industry-standard 0.025-inch square dual-metal receptacle terminals that provide reliable connections and maintain contact pressure through up to 1,000 mating cycles. The system utilizes beryllium copper springs for high normal force at the mating interface and brass contact bodies for gas-tight crimps, ensuring consistent electrical performance. The connectors are available in single or double row configurations, with keyed MINI-LATCH housings and header keyways to prevent mis-mating. The design includes optional polarization, various containment, protection, and guidance options on both sides of the interface. The two-wall header provides mechanical stability and cost efficiency. Suitable for applications in consumer electronics, sensing and instrumentation, medical devices, defense, military, aerospace, communications, networking, and industrial markets, with an operating temperature range of -40°C to 105°C.

View 48239000LFDatasheet [pdf]

Buy the Trusted Connectors 48239000LF – Reliable Wire-to-Board Connectors for Industrial Applications

Experience the reliability and durability of the Mini PV wire-to-board connector system. Designed to withstand up to 1000 mating cycles, it features industry-standard 0.025-inch terminals, polarization, and optional containment options. Suitable for diverse applications such as medical, industrial, consumer electronics, and aerospace, this connector ensures consistent performance across operating temperatures from -40°C to 105°C. Easy to install with supporting application tooling, it provides secure, gas-tight crimps, high normal force contacts, and cost-efficient two-wall headers—perfect for any demanding electronic assembly or industrial project.

Order your FCI Mini PV wire-to-board connector system with high retention and durability today and ensure your projects benefit from dependable electrical connections.
