AMPHENOL COMMUNICATIONS SOLUTIONS 75915308LF Wire-to-Board Connector
The product is a low-profile wire-to-board connector designed with a dual-beam contact for enhanced reliability and a 4-wall contact structure for signal protection. Made from high-temperature thermoplastic with UL94V-0 flammability rating, it features gold or tin plating over nickel, ensuring durability and excellent electrical performance. Suitable for applications requiring up to 3A per contact, it withstands temperatures from -65°C to +125°C, supports 200 mating cycles, and is compatible with various soldering processes such as wave, vapor-phase, and IR reflow. The connector is stackable, with passive latching, anti-mismatch features, and available in multiple configurations for circuit assembly flexibility.
AMPHENOL COMMUNICATIONS SOLUTIONS 75915308LF Wire-to-Board Connector Specifications:
- Housing Material: Thermoplastic polyester, UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or tin over nickel
- Current Rating: 3A max. per contact
- Insulation Resistance: 1x 10^9Ω min.
- Contact Resistance: 15mΩ max. initial, 20mΩ after tests
- Dielectric Withstanding Voltage: 1000V RMS
- Operating Temperature Range: -65°C to +125°C
- Mating Cycles: 200
- Insertion Force: up to 1.50 N with gold contacts
- Withdrawal Force: min. 0.30 N
- Insertion Depth: 3.6mm to 6.81mm depending on entry type
- Flammability: UL94V-0
- Certifications: ROHS compliant
- Packaging: Plastic bags, tubes, tape-and-reel

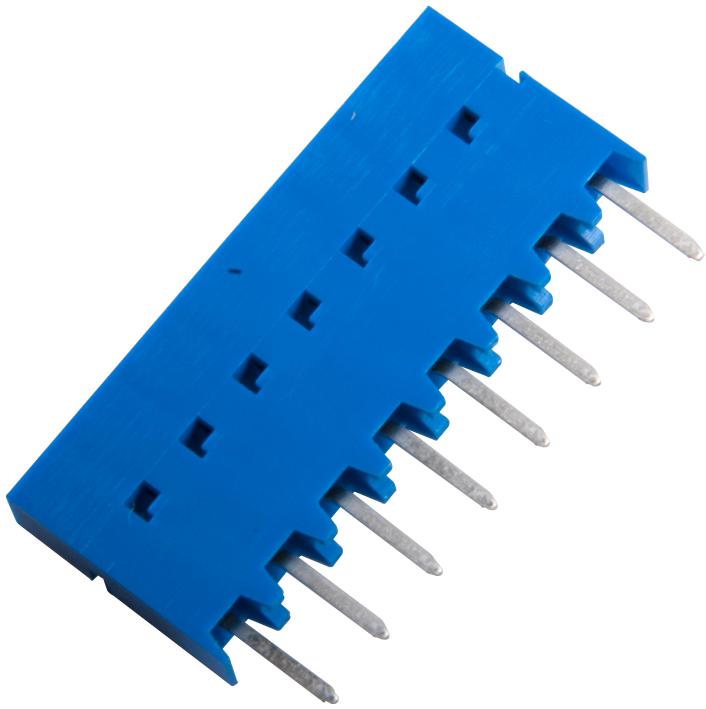

Buy the Buy FCI DUBOX Wire-to-Board Connectors Part Number 75915308LF Online
Enhance your electronics projects with the FCI DUBOX wire-to-board connector, offering low insertion force, high temperature resistance, and multiple configurations. Easy to assemble and designed for durability, it supports up to 3A per contact and withstands environmental stresses with robust insulation resistance and dielectric properties. Perfect for high-reliability applications in industrial, consumer, or communication systems, this connector ensures secure mating with stackable, stackable and anti-mismatch features, along with compliance to ROHS standards. Purchase online now for fast delivery and professional-grade performance.
Order your FCI DUBOX Connectors Part Number 75915308LF today and secure reliable connections for high-temperature, demanding circuit assemblies.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 75915308LF?
You can click on the BUY or RFQ button to purchase 75915308LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 75915308LF?
You can download the 75915308LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 75915308LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
