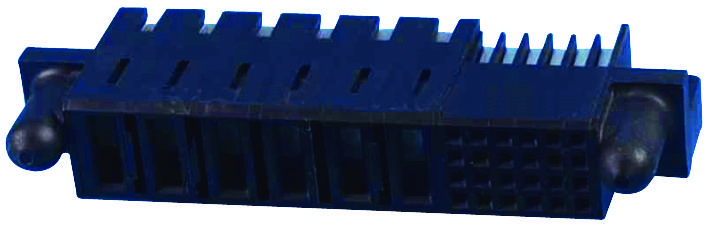

AMPHENOL COMMUNICATIONS SOLUTIONS 5176110002406AALF Power Distribution Connector
The PwrBlade series power distribution connector system from AFCI features integrated power and signal contacts, designed to deliver reliable power distribution and control through a single connector. It offers both vertical and right-angle PCB-mount options, supporting coplanar, backplane, or mezzanine connections. Ideal for robust power connections in embedded AC/DC power supplies, server systems, storage enclosures, and communications equipment, this connector complies with SSI standards and is versatile for various configurations. It can accommodate from one to twenty power contacts and zero to 148 signal contacts. The connector provides high-current ratings of up to 48A per power contact, with up to 30A for 10 adjacent contacts at 30°C, and 60A using UL test guidelines. Its configurable contact arrangement and rugged design with molded-in guides enable blind mating and tailored power solutions for power management, networking, computing, sensing, and industrial applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 5176110002406AALF Power Distribution Connector Specifications:
- Housing Material: high-temperature thermoplastic (UL94V-0), black
- Contact Material: high-conductivity copper alloy (power), copper alloy (signal)
- Contact Finish: performance-based plating over nickel, matte tin over nickel
- Insulation Resistance: power contact 10,000MQ, signal contact 500MO
- Withstanding Voltage: power contact 2,500V DC, signal contact 1,000V DC
- Current Rating: 48A per power contact, de-rated to 30A for 10 contacts at 30°C, 60A per contact per UL guidelines
- Power Contact Resistance: 0.7 mO post environmental exposure
- Mating Force: 25 ounces per power contact, 3.5 ounces per signal contact
- Certifications: UL, CSA, TUV approved
Buy the AFCI Series PwrBlade Power Distribution: 5176110002406AALF
Enhance your power management setup with the AFCI PwrBlade connector system. Designed for high current capacity and flexible configurations, it supports robust connections in server, networking, industrial, and data communications applications. Suitable for embedded AC/DC power supplies, backplane, and mezzanine connections, this connector ensures reliable performance and easy blind mating with molded guides. Perfect for customized power and signal arrangements, it offers UL, CSA, and TUV approvals, making it the ideal choice for demanding industrial and IT environments to achieve seamless power distribution and control.
Order your AFCI Series PwrBlade power connector today and ensure reliable, high-current power distribution for your server, industrial, or telecom projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 5176110002406AALF?
You can click on the BUY or RFQ button to purchase 5176110002406AALF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 5176110002406AALF?
You can download the 5176110002406AALF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 5176110002406AALF?
AMPHENOL COMMUNICATIONS SOLUTIONS
