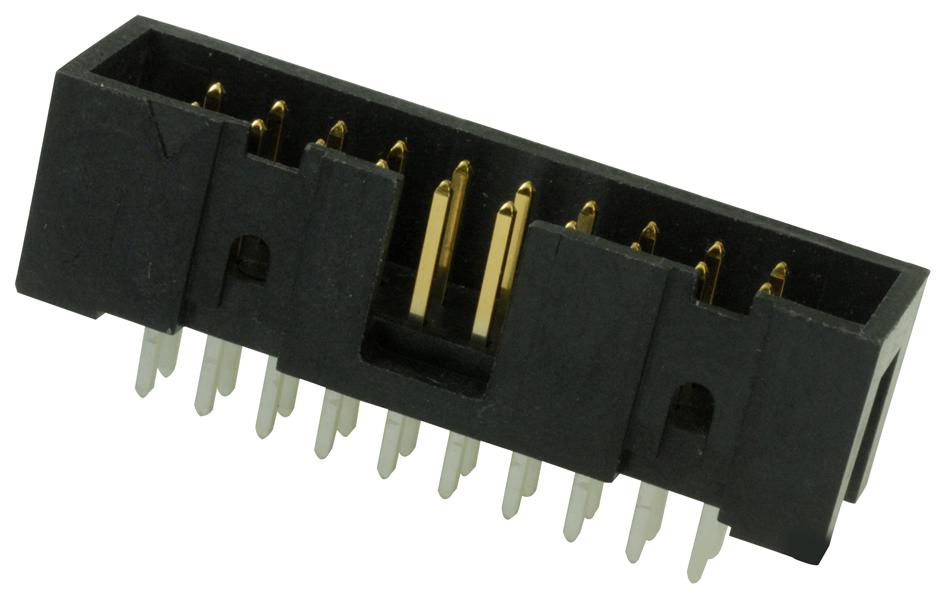

AMPHENOL COMMUNICATIONS SOLUTIONS 52601S206LF Electrical Connector System
The product is a high-quality electrical connector system designed for printed wiring board-to-flat cable interconnections in low power applications. Made from durable polyester with gold or tin plating, it features a two-piece design with full-hard phosphor bronze contacts. The connector supports quick mating and unmating, optional latching, strain relief, and polarization for reliable performance. It withstands environmental stresses such as humidity, thermal shock, vibration, and salt spray, ensuring long-term durability and safety in various operational conditions. Suitable for precise electronic and electrical assemblies, it complies with military and industry standards.
AMPHENOL COMMUNICATIONS SOLUTIONS 52601S206LF Electrical Connector System Specifications:
- Material: Full-hard phosphor bronze contacts, polyester plastic parts
- Finish: Gold or tin plating with nickel underplate
- Contact Resistance: ≤10 milliohms, after environmental exposure ≤15 milliohms
- Current Rating: 1.0 ampere DC
- Insulation Resistance: ≥20,000 megohms after humidity exposure
- Dielectric Withstanding Voltage: 1,000 volts RMS at sea level
- Maximum Pin Length: 6.35 mm / .250 inch, minimum 4.32 mm / .170 inch, recommended 5.84 mm / .230 inch
- Wire Compatibility: AWG 28 stranded, AWG 30 solid
- Environmental Testing: Humidity, thermal shock, vibration, salt spray, hydrogen sulfide
- Mating Force: Not specified, designed for hand-mating
- Mechanical Durability: 100 mating cycles supported
- Cable Flex Resistance: 100 flex cycles with strain relief
- Temperature Range: -65°C to +105°C
- Certificate Compliance: MIL-STD-202, MIL-STD-1344, UL-94V-0 flammability
- Dimensions: Supports board mounting on 2.54 mm/0.100 inch grid, wire termination centers at 1.27 mm/0.050 inch
- Optional features: latching mechanism, strain relief, polarizing key
Buy the Buy FCI Quickie Connector System Part Number 52601S206LF Online
Order the FCI Quickie connector system with precision-engineered components, optional latches, strain relief, and robust plating. Perfect for printed wiring boards and flat cables, this connector offers easy hand-mating, excellent environmental resistance including humidity, thermal shock, vibration, and salt spray. Designed for low power applications, it ensures long-term performance with 1.0 ampere current capacity, low contact resistance, and high insulation resistance. Purchase now online for quick delivery and dependable electrical connections on your electronics assembly.
Buy FCI Quickie connector system with high durability and environmental resilience now and experience reliable low power interconnections for your electronic projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 52601S206LF?
You can click on the BUY or RFQ button to purchase 52601S206LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 52601S206LF?
You can download the 52601S206LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 52601S206LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
