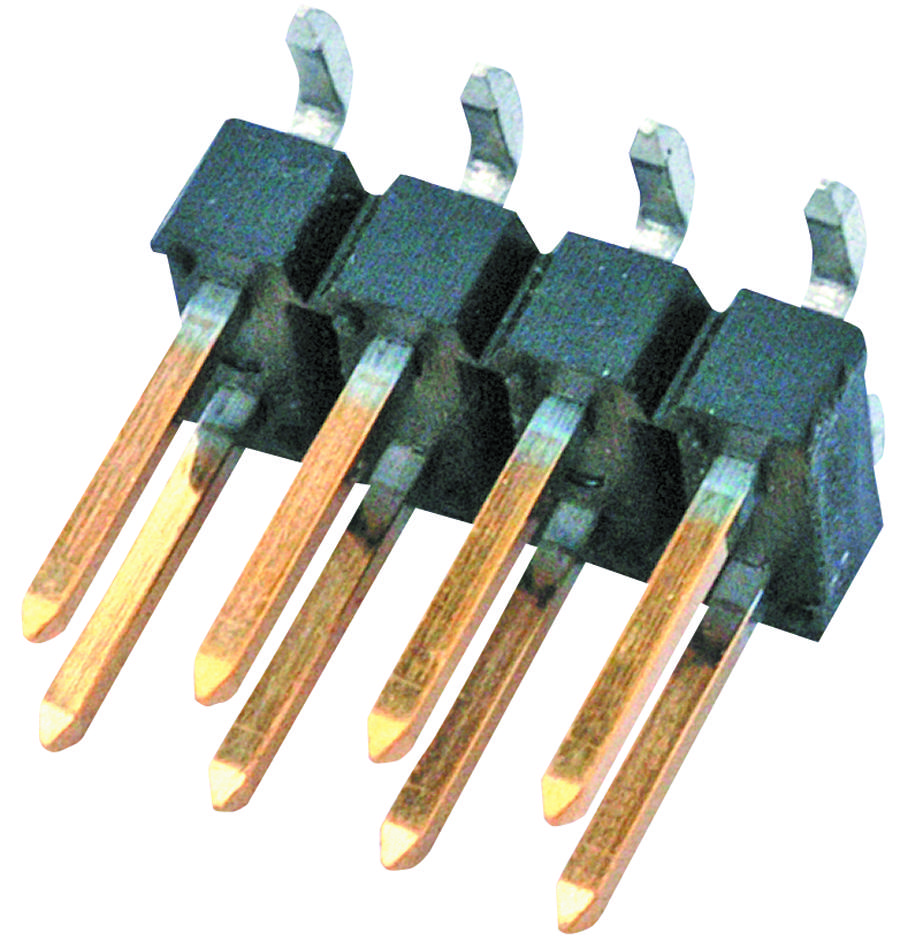

AMPHENOL COMMUNICATIONS SOLUTIONS 54202S0804 PCB Connector
This product is a high-quality, lead-free PCB connector designed for reliable interconnection in surface-mount technology. Made from high-temperature thermoplastic and phosphor-bronze contacts, it withstands soldering temperatures up to 260°C. The connector features dual-row vertical SMT layout, with various sizes and packaging options including tape and reel with pickup caps. It offers excellent pin retention, flame retardant properties, and compatibility with wave, infrared, or vapor phase reflow processes, making it ideal for demanding electronic assembly applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 54202S0804 PCB Connector Specifications:
- Housing Material: High-temperature thermoplastic, UL 94V-0 flame retardant
- Pin Material: Phosphor-bronze
- Temperature Resistance: Up to 260°C for 20 seconds in reflow soldering
- Plating: 100% Pure Tin on contact area, Lead-Free LF suffix versions
- Contact Retention: Minimum 21 pounds (9.5 kg)
- Pin Tips: Sn plated with possible bare metal ends
- Number of Positions: Varies from 2 to 20 per row
- Orientation: Dual row vertical SMT, no polarization required
- Packaging: Tape and reel, with options for pickup caps and customized carriers
- Certifications: Meets EU directives, UL 94V-0, RoHS compliant
- Design includes recommended pad layout for PCB mounting
- Housing withstands exposure to 260°C in soldering processes
- Color: Black
- Dimensions vary with size, typical tail length about 4.0 mm, overall width varies from 4.83 mm to 56.00 mm depending on size
Buy the Buy FCI PCB Connector Part Number 54202S0804 Online
Secure your electronic assembly with the trusted FCI PCB connector. Designed for high-temperature reflow processes, it features dual-row vertical SMT layout, corrosion-resistant tin plating, and various packaging options including tape and reel with pickup caps. Perfect for demanding applications, this high-quality connector offers superb pin retention, UL 94V-0 flame resistance, and compatibility with wave, infrared, or vapor phase soldering. Order online now for fast delivery, reliable performance, and simplified inventory management in your manufacturing process.
Order your FCI Series54202S0804 PCB connector today and ensure robust, reliable surface-mount interconnections for your electronic projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 54202S0804?
You can click on the BUY or RFQ button to purchase 54202S0804 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 54202S0804?
You can download the 54202S0804 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 54202S0804?
AMPHENOL COMMUNICATIONS SOLUTIONS
