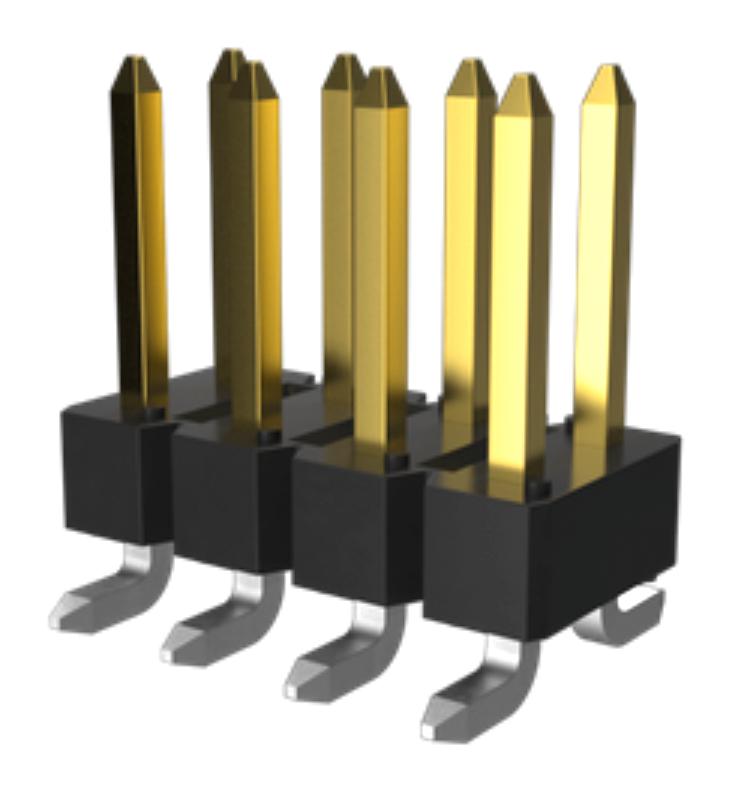

AMPHENOL COMMUNICATIONS SOLUTIONS 54202S0806ALF 2.54mm Header
The BergStik 2.54mm unshrouded headers are versatile connectors suitable for board-to-board, wire-to-board, and cable-to-board applications. Available in vertical, right angle, stacking, and pin-in-paste versions, these high-temperature thermoplastic headers feature gold or tin plating over nickel, supporting a maximum current of 3A per contact. Designed for reliability, they offer excellent insulation resistance, withstanding temperatures from -65°C to +125°C, and are RoHS compliant. Suitable for manual or automated soldering processes, they ensure flexible, cost-effective connectivity in electronic systems.
AMPHENOL COMMUNICATIONS SOLUTIONS 54202S0806ALF 2.54mm Header Specifications:
- Housing Material: High temperature thermoplastic, Black
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27μm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Maximum Contact Insertion Force: >44.48N
- Retention Force: 9N min.
- Suitable for SMT, THT, press-fit, stacking, and pin-in-paste processes
- RoHS compliant according to EU Directive 2002/95/IEC
Buy the Buy BergStik 2.54MM Unshrouded Headers Part Number 54202S0806ALF Online
Enhance your electronic projects with BergStik 2.54mm unshrouded headers, offering reliable board-to-board, wire-to-board, and cable-to-board connectivity. Designed with high temperature thermoplastic, these headers support SMT, THT, press-fit, and stacking configurations, ensuring versatile applications. They feature gold or tin plating over nickel, support up to 3A per contact, and withstand temperatures from -65°C to +125°C. Easily soldered with compatibility for wave, vapor-phase, and IR reflow processes, they are RoHS compliant and ideal for industrial, automotive, and consumer electronics. Get yours online today for dependable performance.
Order your BergStik 2.54MM unshrouded headers 54202S0806ALF today and enjoy high-temperature stability, reliable connections, and flexible mounting options.
