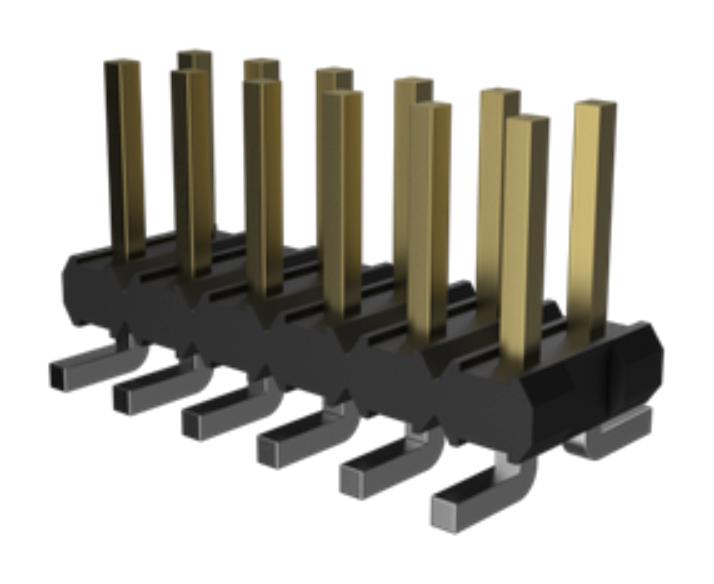

AMPHENOL COMMUNICATIONS SOLUTIONS 57202G5208ALF Connector Module
The Minitek II connector is a versatile double-row, vertical or right-angle electrical connector designed for 2.0mm center-to-center hole spacing, suitable for both high-density and space-constrained applications. Constructed with phosphor bronze terminals featuring gold, nickel, and tin/lead plating, and housed in flame-retardant PBT or PCT materials that meet UL 94V-0 standards, it ensures durability and reliable performance. Rated for 200V AC/DC and 2A current, it operates effectively across -55°C to 125°C, with outstanding resistance to vibration, temperature shock, humidity, and salt spray, suitable for demanding industrial and electronic environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 57202G5208ALF Connector Module Specifications:
- Pitch: 2.0mm center-to-center holes
- Material: Phosphor Bronze terminals; Glass-filled PBT or PCT housings
- Finish: Gold, Nickel, and Tin/Lead plating
- Housing Flammability: UL 94V-0
- Rated Voltage: 200V AC/DC
- Rated Current: 2A
- Operating Temperature: -55°C to 125°C (PCT), -40°C to 105°C (Nylon 6,6 & PBT)
- Contact Resistance: ≤20mΩ (initial), ≤25mΩ (after testing)
- Insulation Resistance: ≥100MΩ at 500V DC
- Dielectric Withstanding Voltage: 650V AC for 1 minute
- Temperature Rise: Max 30°C at 2A current
- Vibration Resistance: Meets MIL-STD-202, Method 201A
- Salt Spray Aging: 48 hours per MIL-STD-202, Method 101D
- Humidity Resistance: 96 hours at 90-95% RH
- Thermal Shock: 5 cycles from -53°C to +85°C
- H2S Exposure: 96 hours at 40°C, 70-80% RH
- Mechanical Retention: ≥1.0 kg (post), ≥0.5 kg (housing contact)
- Mating/Unmating Force: 180g max insertion, 20g min withdrawal
Buy the Minitek II Series Connector: 57202G5208ALF
Purchase the Minitek II Connector 57202G5208ALF online today to ensure high-performance, durable electrical connections suitable for industrial, electronic, and automation applications. Designed with high-quality materials and tested to meet rigorous standards, this connector provides reliable contact resistance, excellent insulation, and resistance to vibration, humidity, and temperature extremes. Ideal for engineers and technicians seeking dependable components for space-constrained and high-density electronic systems. Order now and enjoy fast delivery, comprehensive specifications, and competitive pricing for your next project.
Get Minitek II Series Connector 57202G5208ALF today—built for precision, durability, and reliable electrical connections in demanding environments.
