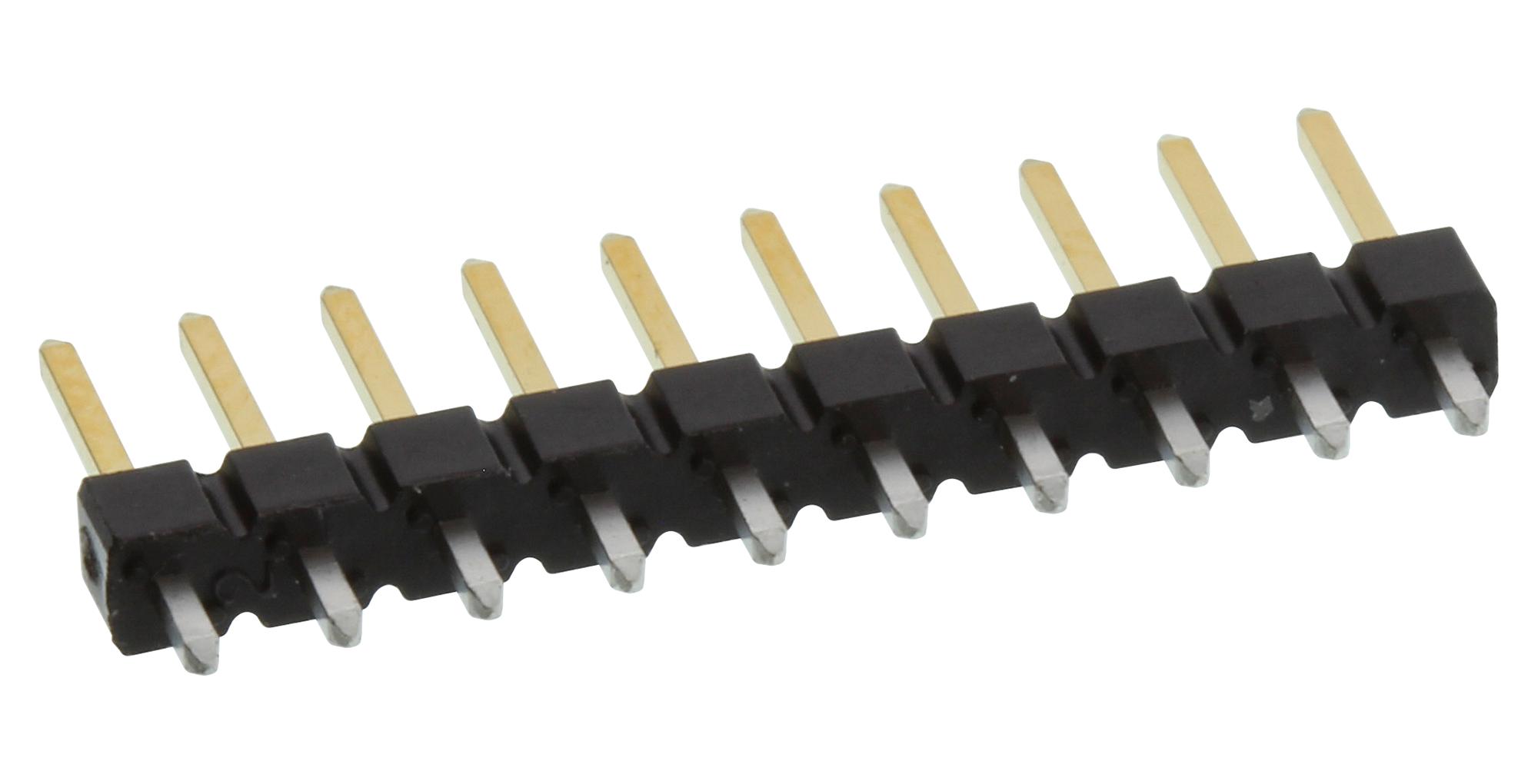

AMPHENOL COMMUNICATIONS SOLUTIONS 69157102HLF Board-to-Board Connector
The Part Number 69157102HLF is a high-quality, unshrouded board-to-board connector designed for reliable electronic interconnections. Crafted from high-temperature thermoplastic with UL94V-0 flammability rating, it features phosphor-bronze pins plated with gold or tin over nickel for enhanced durability and corrosion resistance. Operating within -65°C to +125°C, it offers a current rating of 3A per contact, with insulation resistance exceeding 5000MQ and dielectric withstand voltage of 1500V. Its mechanical retention force ensures secure attachment, ideal for dense electronic assemblies and industrial automation.
AMPHENOL COMMUNICATIONS SOLUTIONS 69157102HLF Board-to-Board Connector Specifications:
- Housing: High temperature thermoplastic, Black
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27μm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Retention Force: 9N min
- Compatible with wave, vapor-phase, and IR reflow soldering processes
- RoHS compliant
- Available in single and double row configurations, various lengths (up to 65mm), and packaging options including tape and reel
Buy the FCI Series BergStik 2.54MM: 69157102HLF
Order the FCI BergStik 2.54MM high-performance unshrouded board-to-board connector today to ensure reliable, durable interconnections for your electronic projects. Crafted from high-temperature thermoplastic with UL94V-0 flammability rating, it features gold or tin plated phosphor-bronze pins rated at 3A per contact. Designed for ease of assembly, it withstands operating temperatures from -65°C to +125°C and supports multiple soldering processes including wave, vapor-phase, and IR reflow. Perfect for industrial automation, equipment, and dense circuit board configurations, this connector guarantees high mechanical retention and excellent electrical performance.
Get FCI 69157102HLF today—built for precision and long-lasting durability in dense electronic applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 69157102HLF?
You can click on the BUY or RFQ button to purchase 69157102HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 69157102HLF?
You can download the 69157102HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 69157102HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
