AMPHENOL COMMUNICATIONS SOLUTIONS 61082041402LF Mezzanine Connector
The BergStak 0.8mm Mezzanine Connector by Amphenol-ICC is a high-density, modular electrical connector system designed for parallel board-to-board applications. Supports up to 12Gb/s data transfer, high durability with 100 mating cycles, and a wide range of sizes and stack heights from 5mm to 20mm. Features include scoop-proof housings, gold or nickel-plated contacts, and compliance with RoHS and UL standards. Suitable for high-speed data, industrial, server, point-of-sale, and diagnostic systems, ensuring reliable signal integrity in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 61082041402LF Mezzanine Connector Specifications:
- Housing Material: Glass filled LCP, UL94V-0
- Contact Material: Copper Alloy (Receptacle), Brass (Plug)
- Contact Finish: Gold or Gold flash over Palladium-nickel, or Tin over Nickel
- Mechanical Durability: 100 mating cycles
- Mating Force: Max 0.9N/contact
- Unmating Force: Min 0.1N/contact
- Electrical Resistance: Initial 30mΩ max, After Test 50mΩ max
- Insulation Resistance: Min 10MΩ initially, 100MΩ after testing
- Voltage Rating: 100VAC
- Current Rating: 0.8A/contact
- Impedance Range: 81–108Ω @ 50ps edge
- Return Loss: <10dB up to 5GHz
- Operating Temperature: -40°C to +125°C
- Environmental: Humidity 90–95%, High Temp Life 105°C for 1000 hours
- Certifications: UL (File no. LR46923), RoHS compliant
- Packaging: Tape & Reel, Tubes
- Available in various sizes from 40 to 200 positions with different plating options

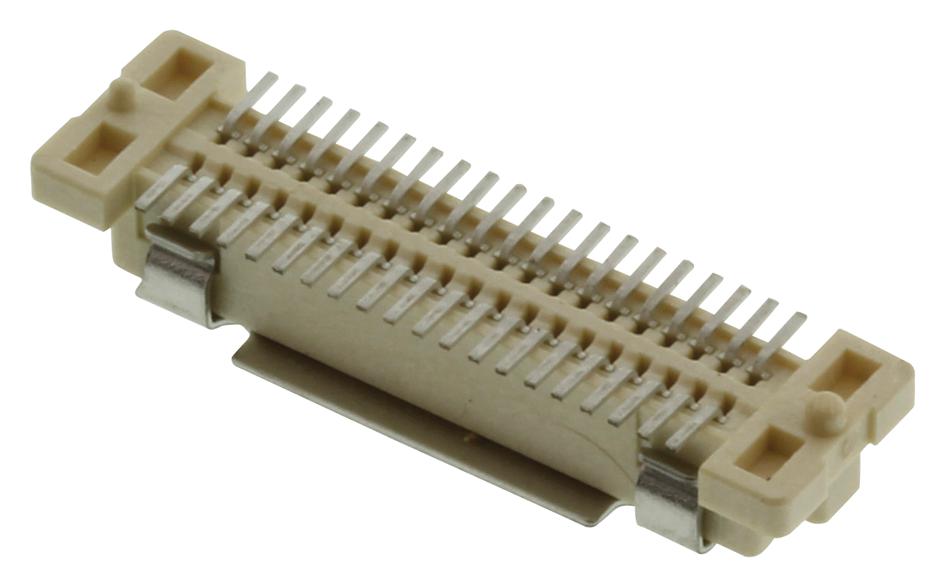

Buy the Amphenol BergStak 0.8mm – Reliable Connector for Industrial Applications
Get the reliable BergStak 0.8mm Mezzanine Connector by Amphenol-ICC now available for online purchase. Designed for high-speed, high-density applications, it features durable construction, gold and nickel plating options, and supports up to 12Gb/s data transfer. Suitable for industrial, server, and diagnostic systems, its versatile size range from 40 to 200 positions and stack heights from 5mm to 20mm make it ideal for complex electronic designs. Order online today for fast delivery and dependable performance in your projects.
Order your Amphenol Series BergStak 0.8mm connector today and ensure high-speed, high-density connections for your industrial projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 61082041402LF?
You can click on the BUY or RFQ button to purchase 61082041402LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 61082041402LF?
You can download the 61082041402LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 61082041402LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
