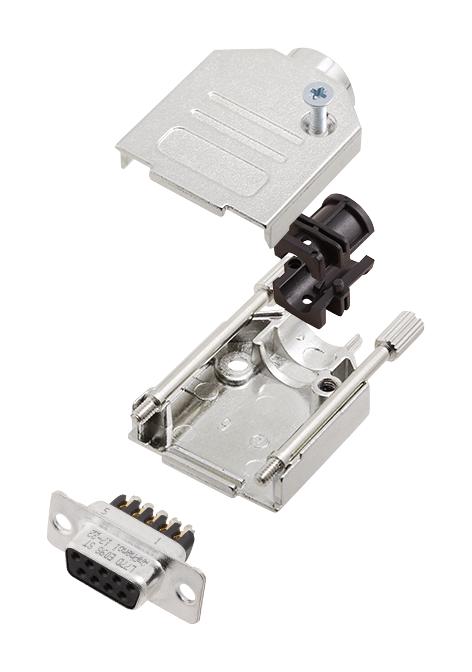

AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZK25L77DB25SST D-Sub Connector
The screw-type D-Sub connector kit is designed for reliable electrical connections in industrial and communication applications. Made with zinc and nickel-plated shell, it features a glass-filled thermoplastic insulator rated UL94 V-0, with steel shell and machined brass contact pins plated with gold over nickel for excellent conductivity and corrosion resistance. Operating in temperatures from -55°C to +85°C, it withstands voltages above 1000V RMS at 50Hz, with a maximum current of 7.5A. Available sizes include 9, 15, and 25 positions, offering EMI shielding and re-openable design for easy assembly and maintenance.
AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZK25L77DB25SST D-Sub Connector Specifications:
- Material: Zinc, Nickel plated
- Insulator: Glass filled thermoplastic, UL94 V-0
- Shell: Steel, Tin plated
- Contact pins: Machined brass, gold flash over nickel
- Operating temperature: -55°C to +85°C
- Voltage withstand: >1000V RMS to 50 Hz for 1 minute
- Current rating: 7.5A
- Insulator resistance: >5000 MΩ
- Cable entry: Top entry with cable O.D up to 11.5mm
- Thumb screws: UNC 4-40 (standard)
- Sizes: 9, 15, 25 positions
- Dimensions: 31.0mm, 39.5mm, 53.5mm (A), 39.5mm, 41.5mm, 48.5mm (B), 15.0mm (C)
Buy the Buy Amphenol D-Sub Connector Part Number L17DTZK25L77DB25SST Online
Purchase the high-performing D-Sub connector kit by Amphenol, featuring zinc nickel-plated shells, gold flash contacts, and EMI shielding, ideal for trustworthy industrial and communication setups. Available in sizes 9, 15, and 25, it offers top entry cable design, re-openable feature, and operating temperatures from -55°C to +85°C. With withstand voltages exceeding 1000V RMS at 50Hz, it ensures reliable, long-lasting electrical connections. Order online today to enhance your system’s performance with this durable, easy-to-install connector kit.
Get Amphenol D-Sub Connector Part Number L17DTZK25L77DB25SST today—built for robust electrical connections and industrial durability.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZK25L77DB25SST?
You can click on the BUY or RFQ button to purchase L17DTZK25L77DB25SST from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L17DTZK25L77DB25SST?
You can download the L17DTZK25L77DB25SST datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L17DTZK25L77DB25SST?
AMPHENOL COMMUNICATIONS SOLUTIONS
