AMPHENOL COMMUNICATIONS SOLUTIONS 61082141402LF Mezzanine Connector
The BergStak 0.8mm Mezzanine Connector from Amphenol is a high-density, high-speed board-to-board connector system designed for up to 12Gb/s performance. It features a compact 0.8mm pitch, with sizes ranging from 40 to 200 positions and stack heights from 5mm to 20mm. Made of UL94V-0 rated materials, it supports PCIe Gen 2/3, SAS 3.0, and parallel stacking applications. Durable for 100 mating cycles, it offers gold or palladium-nickel finishes, with robust electrical and mechanical performance suitable for servers, industrial, and point-of-sale equipment.
AMPHENOL COMMUNICATIONS SOLUTIONS 61082141402LF Mezzanine Connector Specifications:
- Housing material: Glass filled LCP UL94V-0
- Contact base: Copper alloy, high spring
- Plug: Brass, receptacle: Copper alloy
- Contact finish: Gold or gold flash over palladium-nickel, solder area matte pure tin over nickel
- Mating cycles: 100
- Mating force: 0.9N max/contact
- Unmating force: 0.1N min/contact
- Current rating: 0.8A/contact
- Contact resistance: 30mΩ max (initial), 50mΩ max (after test)
- Voltage rating: 100VAC
- Impedance: 81 to 108Ω @ 50 ps edge
- Return loss: < 10dB up to 5GHz
- Insertion loss: < 1.5dB up to 5GHz
- Temperature range: -40°C to +125°C
- Environmental: High temp life 105°C+5°C for 1000 hours, 90-95% humidity for 96 hrs
- Certifications: UL Listed file LR46923
- Packaging: Tape & reel, tubes

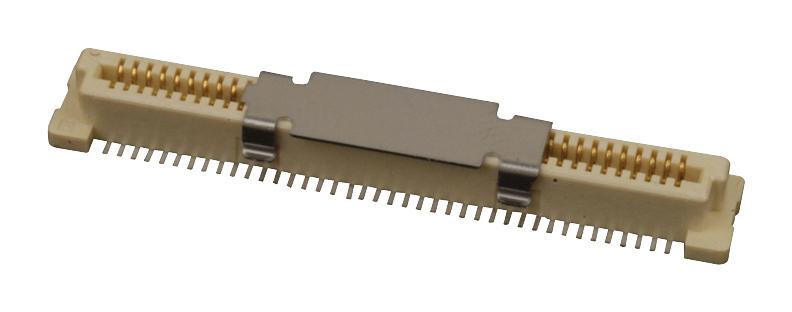

Buy the Buy Amphenol BergStak 0.8mm Mezzanine Connector Part Number 61082141402LF Online
Discover the high-performance BergStak 0.8mm mezzanine connector from Amphenol, ideal for high-speed applications up to 12Gb/s. With sizes from 40 to 200 positions and stack heights ranging from 5mm to 20mm, it provides a compact and reliable solution for parallel board stacking. Made of UL94V-0 rated materials with gold or palladium-nickel finishes, this connector system ensures durability, excellent electrical performance, and environmental compliance. Perfect for servers, industrial equipment, and diagnostics systems, order now for seamless integration and advanced data connectivity.
Buy Amphenol 61082141402LF BergStak connector now and ensure reliable high-speed data transfer with durable high-density design.
