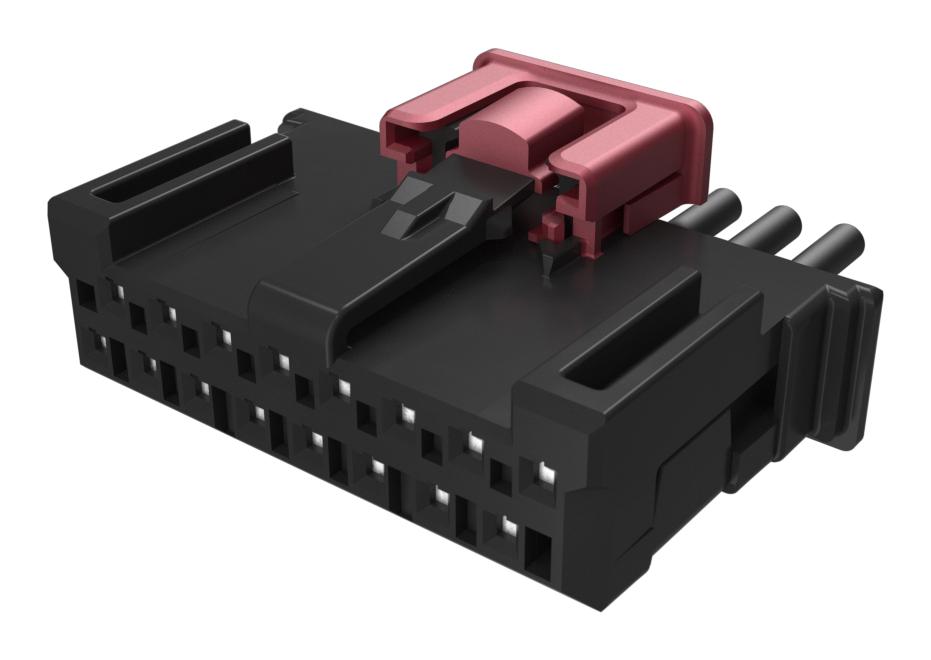

AMPHENOL COMMUNICATIONS SOLUTIONS 10142348006LF MicroSpace Connector
The Minitek MicroSpace™ crimp-to-wire connector platform features a unique design enabling LV214 Severity-2 compliance. It supports pitches of 1.80 mm, 1.50 mm, and 1.27 mm, perfect for compact electronic assemblies. This robust system is available in single and double row versions with top and side latch options. It incorporates low insertion force terminals for easy mating, along with keying features to prevent mismatching. The connectors ensure correct terminal insertion with terminal and connector positioning assurance, withstand harsh environments, and utilize existing crimp sections with automated tooling up to 22 AWG. Designed for high vibration resistance, it provides a contact current rating of 4A per contact, making it suitable for industrial and automotive applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 10142348006LF MicroSpace Connector Specifications:
- Material: High Current Alloy with optional Tin and Gold/GXT plating
- Housing: High temperature thermoplastic, UL94V-0
- Contact Insertion Force: <3N
- Terminal Retention: >50N
- Electrical Ratings: Voltage 48V, Current 4A
- Insulation Resistance: >100MQ
- Low Level Contact Resistance: <30mΩ
- Operating Temperature: -40°C to +130°C
- Temperature Rise: 30°C max
- Dielectric Withstanding Voltage: 500VAC
- Vibration Resistance: >75N locking strength
- Durability: 20-100 mating cycles depending on plating
- Wire Range: Up to 22 AWG
- Inclusion of keying features for correct insertion and mating assurance
- Supported pitches: 1.27 mm, 1.50 mm, 1.80 mm
- Suitable for harsh environments and applications requiring high vibration resistance
Buy the Amphenol Series MicroSpace Crimp-to-Wire Connector: 10142348006LF
Purchase the MicroSpace Connector online now to ensure your electronic projects or industrial applications benefit from a reliable, compact, and versatile connector system. This high-quality crimp-to-wire connector features an innovative design supporting LV214 Severity-2 compliance, with pitches of 1.27mm, 1.50mm, and 1.80mm. It offers easy mating with low insertion force terminals, self-aligning keying, terminal retention, and high vibration resistance. Perfect for harsh environments, it ensures a secure, correct connection every time, with excellent electrical performance, making your assembly process efficient and dependable.
Order your Amphenol Series MicroSpace 10142348006LF crimp-to-wire connector today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10142348006LF?
You can click on the BUY or RFQ button to purchase 10142348006LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10142348006LF?
You can download the 10142348006LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10142348006LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
