AMPHENOL COMMUNICATIONS SOLUTIONS 65043035LF Wire-to-Board Connector
The Mini-PV 65043 series crimp-to-wire connection system provides a reliable method for connecting discrete wires to printed circuit boards. Featuring high-reliability dual-metal receptacle terminals, it ensures secure engagement with industry-standard 0.025-inch (0.635mm) square posts. The system offers a variety of containment, protection, and guidance options on both sides of the connector interface. The PV® receptacle terminals can be terminated to wire independently or inserted into multiple-circuit MINI-LATCH connector housings with optional polarizing keys. The printed circuit side employs shrouded multiple-post headers with integral friction features that grip the sides of the MINI-LATCH housings, reducing disengagement risk. The unique dual-metal PV® contacts maintain consistent contact pressure over up to 1000 mating cycles, supported by a beryllium copper spring for high normal force and a brass contact body for a gas-tight crimp termination. Additional features include side walls that engage with MINI-LATCH housing sides for enhanced retention, compatibility with single or double row configurations, and keyed housings for polarization. The two-wall header design offers both mechanical benefits and cost efficiency, making it suitable for various applications such as sensing and instrumentation, medical devices, avionics, defense, military, aerospace, communications, networking, automotive, consumer electronics, and industrial uses.
AMPHENOL COMMUNICATIONS SOLUTIONS 65043035LF Wire-to-Board Connector Specifications:
- Contact Material: Brass body with beryllium copper spring
- Contact Plating: Gold or pure tin over nickel
- Housing Material: Modified polyphenylene oxide UL94V-0 (Mini-LATCH), Glass-filled nylon UL94V-0 (headers)
- Current Rating: 3.0A with 32 AWG wire; derating applies for larger wires
- Withstanding Voltage: 1000V RMS
- Insulation Resistance: >10000MQ (wire connector), >5000MQ (header)
- Contact Resistance: <2mQ
- Temperature Range: -40°C to +105°C
- Durability: 1000 mating cycles
- Wire Max Diameter: 1.52mm
- Mating Force: 450g (high spring), 100g (ultra-high spring)
- Un-mating Force: 75g (high spring), 175g (ultra-high spring)

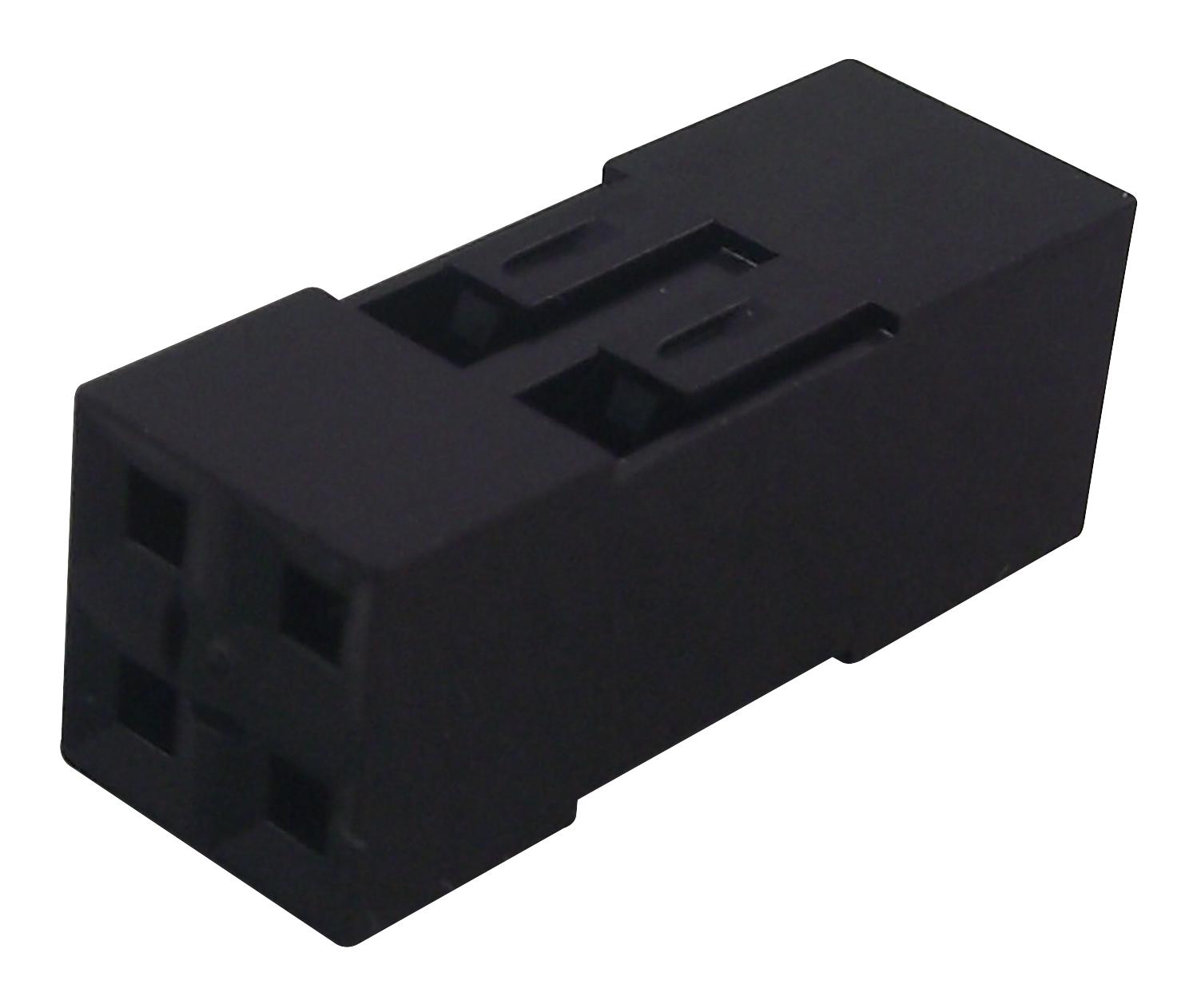

Buy the FCI Series 65043 Double Row Wire-to-Board Connector: 65043035LF
Order the FCI 65043 series wire-to-board connector system online today and enjoy a highly reliable, durable connection solution. Featuring dual-metal receptacle terminals that maintain pressure over 1000 cycles, shrouded headers, and optional polarization, this system offers excellent protection and engagement. Suitable for medical devices, aerospace, automotive, and industrial equipment, its flexible configurations—single or double row—plus RoHS compliance ensure versatility. Easy to install with application tooling and dependable performance, the FCI connector is ideal for complex, high-reliability electronic systems requiring secure and precise connections.
Get FCI 65043035LF today—built for high reliability and long-lasting durability in industrial and medical applications.
