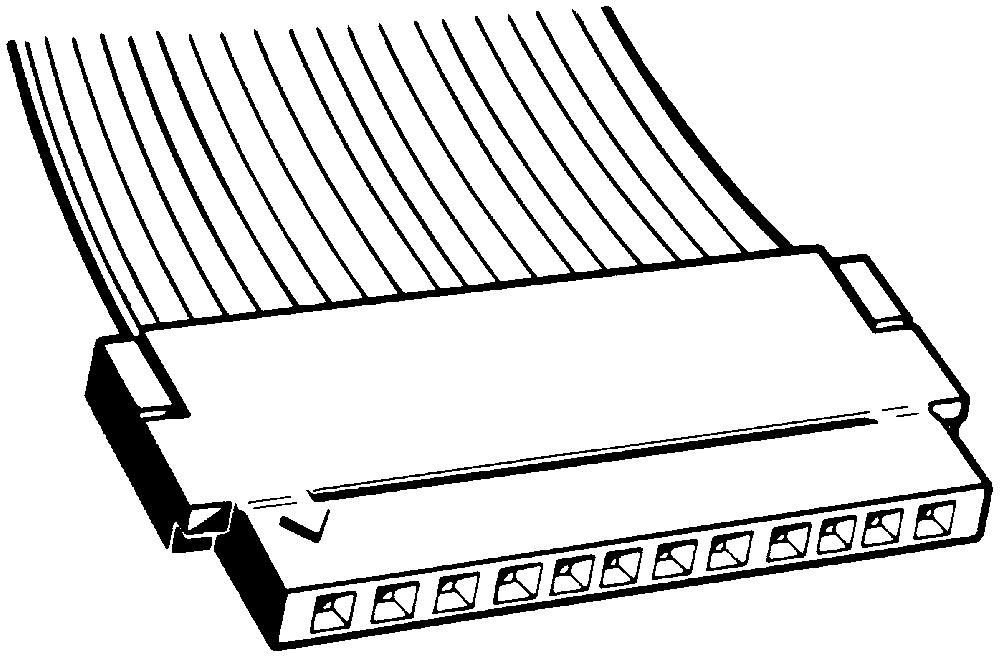

AMPHENOL COMMUNICATIONS SOLUTIONS 65801003LF Flexible Circuit Connector
The Clincher series CLINCHER™ Connector family includes single-row pin and receptacle connectors designed for termination to flat flexible circuitry, such as flat flexible cable (FFC), Flexible Printed Circuit (FPC), and Conductive Ink Circuitry (CIC). These connectors feature gas-tight, contamination-free termination points at the conductor, utilizing a secure Clinch cable termination method. The receptacles incorporate FCI's reliable Mini PV™ dual-metal contacts and include a housing window for crimp inspection. The openings are beveled to reduce the risk of stubbing during mating. Available in sizes from 2 to 34 positions, these connectors offer polarization options for proper alignment and secure mating. Compatible with two-wall PCB headers, they facilitate passive termination and ensure robust connection suited for demanding applications in consumer electronics, logistics, industrial, sensing & instrumentation, and medical fields.
AMPHENOL COMMUNICATIONS SOLUTIONS 65801003LF Flexible Circuit Connector Specifications:
- Housing Material: Polypropylene UL 94 V-O, Blue
- Contact Base Metal: Cupro-nickel (receptacles), Phosphor Bronze (headers)
- Contact Spring Metal: Beryllium Copper
- Plating Options: 3u Gold/GXT or 10u lead-free
- Electrical Resistance: Max 10 mΩ main contacts, 20 mΩ after exposure
- Insulation Resistance: Min 5000 MΩ
- Withstanding Voltage: 1000 VAC RMS
- Current Rating: 2.0 Amp per contact
- Cable Specification: IPC Standard FC-220 B, Tolerance Class IV
- Cable Thickness: Max 0.33mm including insulation
- Conductor Thickness: 0.076 +/- 0.013mm
- Conductor Width: 1.57 +/- 0.07mm
- Materials: Mylar® or KAPTON® Polyimide insulation
- Contact Durability: 100 mating cycles
- Cable Retention: 10 lbs per inch of cable width
- Mating Force: Max 300 grams per contact
- Latch Retention: Min 4 lbs
Buy the Buy FCI CLINCHER™ Connector Part Number 65801003LF Online
Purchase the FCI CLINCHER™ connector part number 65801003LF online today for exceptional reliability and ease of assembly. Ideal for flexible electronic applications, it features gas-tight, contamination-free termination points utilizing Clinch technology. Its robust Mini PV™ contacts ensure secure connections, while compatibility with PCB headers simplifies integration. Perfect for consumer electronics, medical devices, and industrial equipment, this connector offers polarization options, a housing window for crimp inspection, and an extended lifespan of 100 mating cycles. Order now to ensure secure and durable flexible circuitry connections.
Get FCI CLINCHER™ connector part number 65801003LF today—designed for reliable flexible circuitry connections, featuring gas-tight termination and high durability.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 65801003LF?
You can click on the BUY or RFQ button to purchase 65801003LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 65801003LF?
You can download the 65801003LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 65801003LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
