AMPHENOL COMMUNICATIONS SOLUTIONS 65801012LF Flexible Circuit Connectors
The Clincher series CLINCHER™ Connector family includes single-row pin and receptacle connectors designed for termination to flat flexible circuitry. These products are suitable for flat flexible cable (FFC), flexible printed circuit (FPC), and conductive ink circuitry (CIC). The connectors feature gas-tight, contamination-free connections at each conductor through Clinch cable termination. The receptacles utilize FCI's proven Mini PV™ dual-metal contact design, ensuring high reliability. They include a housing window that allows for crimp inspection to verify proper termination, and bevelled lead-in openings to reduce stubbing risk during mating. Available in sizes from 2 to 34 positions, these connectors offer polarization options for correct alignment and secure mating. Complementary two-wall PCB headers provide passive alignment and proper termination options. The design allows for quick mass termination of unprepared cables, accelerating assembly processes. Positive-locking latching options ensure secure mating for demanding applications. Suitable for use in consumer electronics, logistics, industrial, sensing and instrumentation, and medical applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 65801012LF Flexible Circuit Connectors Specifications:
- Housing Material: Polypropylene UL 94 V-O, Blue
- Contact Body Material: Cupro-nickel (receptacles), Phosphor Bronze (headers)
- Spring Material: Beryllium Copper with 3u Gold/GXT or 10u lead-free plating
- Electrical Resistance: Max 10 mΩ main contacts, 20 mΩ after environmental exposure
- Insulation Resistance: Min 5000 MΩ
- Withstanding Voltage: 1000 VAC RMS
- Current Rating: 2.0 amps per contact
- Cable Specification: IPC Standard, FC-220 B, Tolerance class IV
- Cable Thickness: Max 0.33mm including insulation
- Cable Insulation Material: Mylar® or KAPTON® Polyimide
- Conductor Thickness: 0.076 ± 0.013mm (approximately 0.003 inches)
- Conductor Width: 1.57 ± 0.07mm
- Contact Mating Cycles: 100
- Contact Resistance: Max 10 mΩ (new), 20 mΩ after exposure
- Mechanical: Mating force up to 300g per contact, latch retention min 4 lbs, contact retention min 30g
- Cable Retention: 10 lbs per inch of cable width

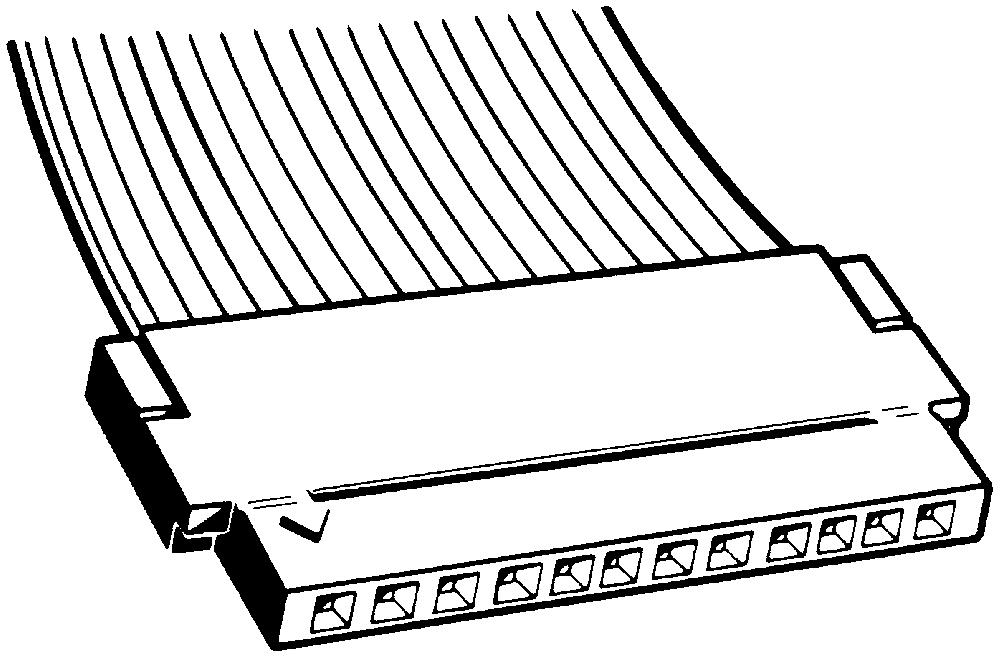

Buy the FCI Series CLINCHER Connector System: 65801012LF
Experience the reliable performance of the FCI CLINCHER flexible circuit connectors. Designed for gas-tight, contamination-free connections, these connectors simplify cable assembly, reduce costs, and ensure secure, high-quality mating in medical, industrial, and consumer electronics applications. With polarization options, positive-locking latches, and easy crimp inspection, they provide a robust solution for demanding environments. Invest in FCI’s proven technology and accelerate your assembly process. Purchase online today and ensure optimal performance and durability for your flexible circuitry needs.
Get FCI CLINCHER 65801012LF today—built for precision and long-lasting durability in flexible circuitry applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 65801012LF?
You can click on the BUY or RFQ button to purchase 65801012LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 65801012LF?
You can download the 65801012LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 65801012LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
