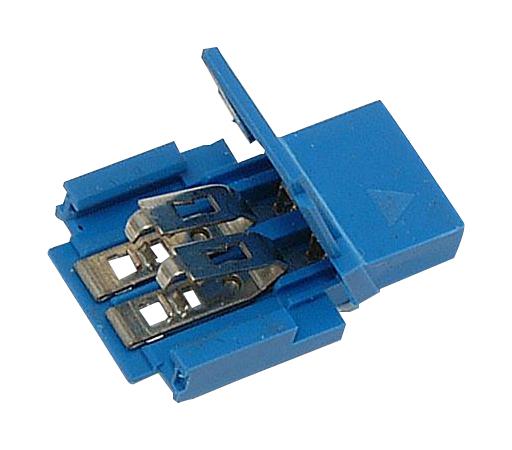

AMPHENOL COMMUNICATIONS SOLUTIONS 65801020LF Flexible Circuitry Connectors
The Clincher connector family offers single-row pin and receptacle connectors engineered for reliable, gas-tight termination to flat flexible circuitry, including FFC, FPC, and CIC applications. Featuring clinch cable termination, these connectors ensure contamination-free, gas-tight contacts at each conductor. Incorporating FCI's Mini PV dual-metal contacts, they provide high reliability with easy crimp inspection windows and beveled openings to reduce stubbing. Available from 2 to 34 positions with polarization and locking options, the connectors enable rapid, secure mass termination, suitable for consumer electronics, industrial, medical devices, and other demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 65801020LF Flexible Circuitry Connectors Specifications:
- Housing Material: Polypropylene UL 94 V-0, Blue
- Contact Material: Cupro-nickel (receptacles), Phosphor Bronze (headers)
- Contact Spring Material: Beryllium Copper
- Plating Options: 3u Gold/GXT or 10u lead-free
- Electrical Resistance: Max 10 mΩ (main contacts), 20 mΩ after environmental exposure
- Insulation Resistance: 5000 MΩ minimum
- Withstanding Voltage: 1000 VAC RMS
- Current Rating: 2.0 amps per contact
- Cable Specification: IEC FC-220 B, tolerance class IV
- Cable Thickness: Max 0.33mm including insulation
- Conductor Width: 1.57mm, Thickness: 0.076mm
- Contact Durability: 100 mating cycles
- Mating Force: Max 300 grams per contact
- Latch Retention: Min 4 lbs
- Cable Retention: 10 lbs per inch of cable width
- Cable Insulation: Mylar or KAPTON Polyimide
- Operating Temperature Range: Not specified externally, standard for flexible circuitry
- Environmental Compliance: Not specified externally, subject to regulations
Buy the Buy FCI Clincher Connectors Part Number 65801020LF Online
Purchase the FCI Clincher connectors online today to ensure secure, contamination-free, gas-tight connections for your flexible circuitry projects. These connectors are designed for high reliability and quick, efficient mass termination, fitting a wide range of applications from consumer electronics to medical devices. Their compatibility with flat flexible cable and circuit boards makes them ideal for industrial, sensing, and instrumentation applications. Enjoy fast delivery and expert support when you buy online, ensuring your projects are completed with precision and durability.
Get FCI Clincher connector family today—designed for reliable, gas-tight connections in flexible circuitry applications with quick mass termination.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 65801020LF?
You can click on the BUY or RFQ button to purchase 65801020LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 65801020LF?
You can download the 65801020LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 65801020LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
