AMPHENOL COMMUNICATIONS SOLUTIONS 66226014LF Flexible Circuit Connectors
The Clincher connector system offers reliable, gas-tight connections for flexible circuitry, including FFC, FPC, and CIC. Featuring
AMPHENOL COMMUNICATIONS SOLUTIONS 66226014LF Flexible Circuit Connectors Specifications:
- Housing: Polypropylene UL 94 V-O, Blue
- Contact Material: Cupro-nickel (receptacles), Phosphor Bronze (pin headers)
- Contact Spring Material: Beryllium Copper
- Plating: 3U Gold/GXT or 10U lead-free
- Electrical Resistance: Max 10 mO main contacts, 20 mO after exposure
- Insulation Resistance: Min 5000 MO
- Withstanding Voltage: 1000 VAC RMS
- Current Rating: 2.0 amps
- Contact Mating Force: Max 300 grams per contact
- Latch Retention: Min 4 lbs
- Contact Retention: Min 30 grams
- Cable Compatibility: IPC Standard FC-220 B, Max thickness 0.33mm
- Cable Insulation Material: Mylar®, KAPTON® Polyimide
- Cable Conductor Width: 1.57mm
- Operating Cycles: 100 mating cycles

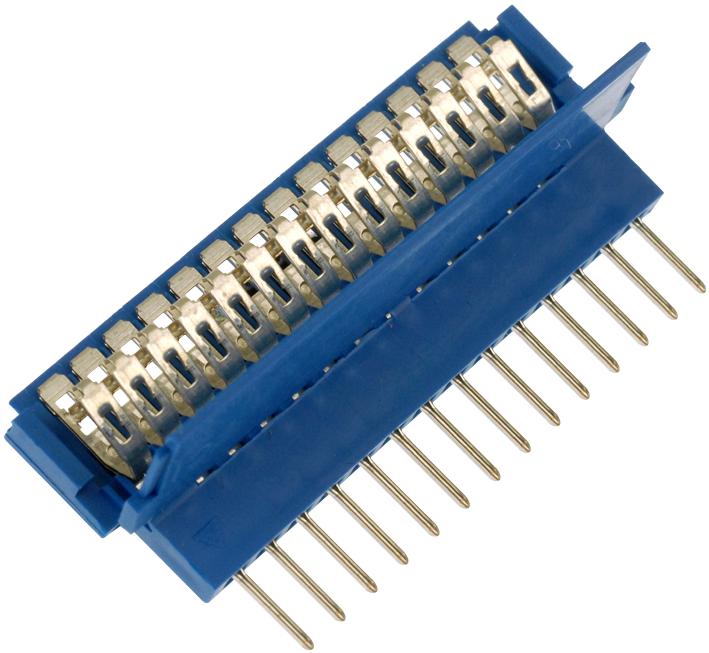

Buy the FCI Series Clincher Flexible Circuit Connectors: 66226014LF
Enhance your electronic assembly with FCI Clincher flexible circuit connectors. Designed for reliability, these connectors ensure gas-tight, contamination-free connections to flat flexible cable (FFC), flexible printed circuit (FPC), and conductive ink circuitry (CIC). They feature secure latching, high durability with up to 100 mating cycles, and are suitable for a variety of industries including appliances, medical devices, and industrial applications. Easy to install and maintain, these connectors optimize performance and reduce assembly costs.
Buy FCI Clincher connectors now and experience unmatched reliability and performance in flexible circuitry applications.
