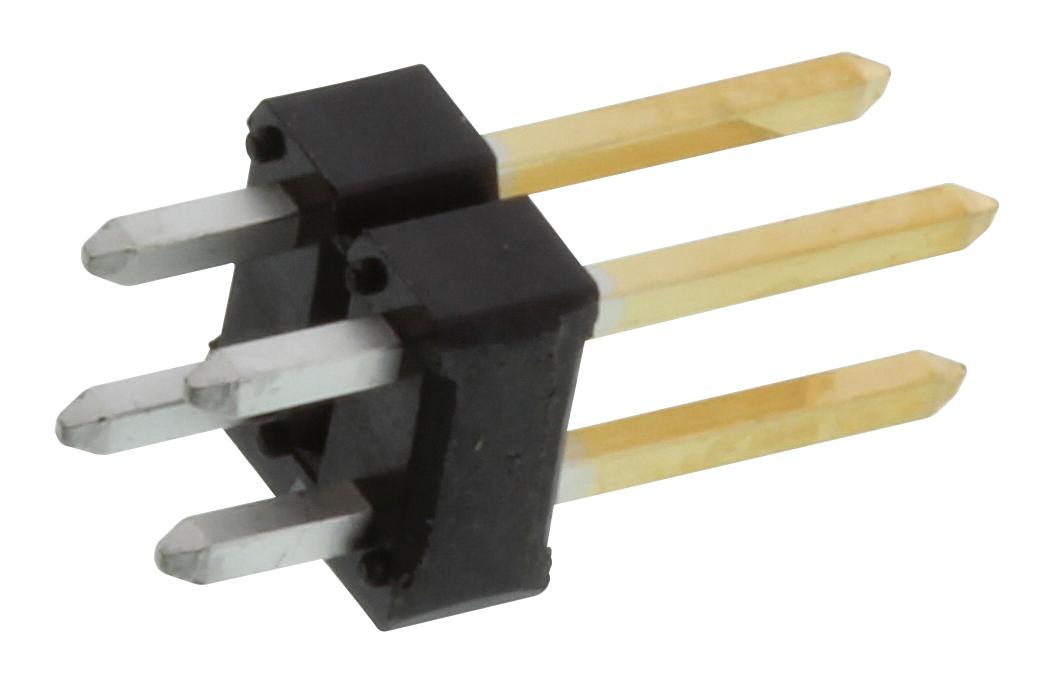

AMPHENOL COMMUNICATIONS SOLUTIONS 67996404HLF Interconnect Headers
BergStik 2.54mm unshrouded headers are versatile interconnect components available in surface-mount, through-hole, press-fit, stacking, and pin-in-paste versions. Designed for high reliability, these connectors feature high-temperature thermoplastic housings with UL94V-0 flammability rating, phosphor-bronze pins with gold or tin plating, and support up to 100 mating cycles. Suitable for various electronic applications, they withstand operating temperatures from -65°C to +125°C, offer 3A per contact current rating, and are compatible with wave, vapor-phase, and IR reflow soldering processes, ensuring durability and ease of assembly.
AMPHENOL COMMUNICATIONS SOLUTIONS 67996404HLF Interconnect Headers Specifications:
- Housing: High temperature thermoplastic, Black
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27μm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ minimum
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Mechanical Retention Force: 9N minimum
- Supported Soldering Processes: Wave, vapor-phase, IR reflow
- Product Range: Single and double-row, various configurations
- Packaging: Bags, tape-and-reel, optional tubes
- RoHS Compliant: Yes
Buy the Buy BergStik 2.54MM Unshrouded Headers Part Number 67996404HLF Online
Purchase BergStik 2.54mm unshrouded headers online today. These high-quality, versatile connectors feature a durable thermoplastic housing, gold or tin plating for excellent conductivity, and support multiple mounting options including surface-mount, through-hole, and stackable configurations. Withstanding temperatures from -65°C to +125°C and supporting up to 3A per contact, they are ideal for applications requiring reliable electrical connections. Compatible with wave, vapor-phase, and IR reflow soldering, ensuring efficient assembly and long-lasting performance in various electronic systems.
Get BergStik 2.54MM Unshrouded Headers 67996404HLF today—built for high durability and versatile assembly in electronic devices.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 67996404HLF?
You can click on the BUY or RFQ button to purchase 67996404HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 67996404HLF?
You can download the 67996404HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 67996404HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
