AMPHENOL COMMUNICATIONS SOLUTIONS 2002111100040T4LF Board-to-Board Connector
The 20021111-00040T4LF is a 40-position, two-row through-hole board-to-board header with gold-plated copper alloy contacts and a 1.27mm pitch. It features a 3.05mm mating length and a 2.3mm tail length, suitable for industrial controls, data, and communications applications. The connector is halogen-free, complies with UL certification, and withstands temperatures from -55°C to +125°C. Its modular design offers reliable, space-saving connections with a maximum mating force of 2.2N per contact, ensuring durability for 100 mating cycles in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 2002111100040T4LF Board-to-Board Connector Specifications:
- Pitch: 1.27mm
- Number of positions: 40
- Configuration: Two-row, through-hole
- Contact material: Copper Alloy
- Contact finish: Gold flash, 10u” Gold over nickel
- Housing material: High-temperature, halogen-free resin
- Mating length: 3.05mm
- Tail length: 2.3mm
- Temperature range: -55°C to +125°C
- Current rating: 1.0 amp/contact
- Voltage rating: 125VAC
- Durability: 100 cycles
- Certifications: UL E66906
- Environmental: Humidity 95% RH for 96 hours
- Mechanical force: Mating 2.2N max/contact, unmating 0.2N min/contact
- Packaging: Tape and reel, tube

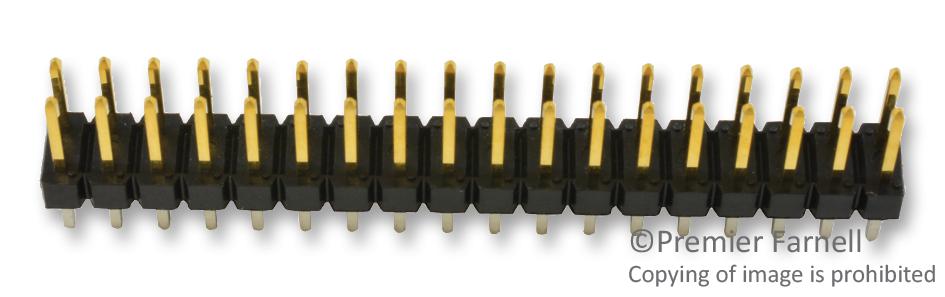

Buy the Buy Minitek Industrial Board-to-Board Connector Part Number 2002111100040T4LF Online
购买高质量的板对板连接器，型号为2002111100040T4LF。它采用1.27mm脚距，铜合金金表面处理，适用于工业控制、数据通信和医疗设备。支持-55°C至+125°C温度范围，具备UL认证和100次连接耐久性。紧凑设计节省空间，保证连接可靠性。在线轻松购买，享受快速交付和优质客户服务。为您的电子项目提供稳定的连接方案，从此无需担心连接问题。
Order your Minitek Series2002111100040T4LF industrial board-to-board connector today and ensure reliable, space-efficient connections in your projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 2002111100040T4LF?
You can click on the BUY or RFQ button to purchase 2002111100040T4LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 2002111100040T4LF?
You can download the 2002111100040T4LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 2002111100040T4LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
