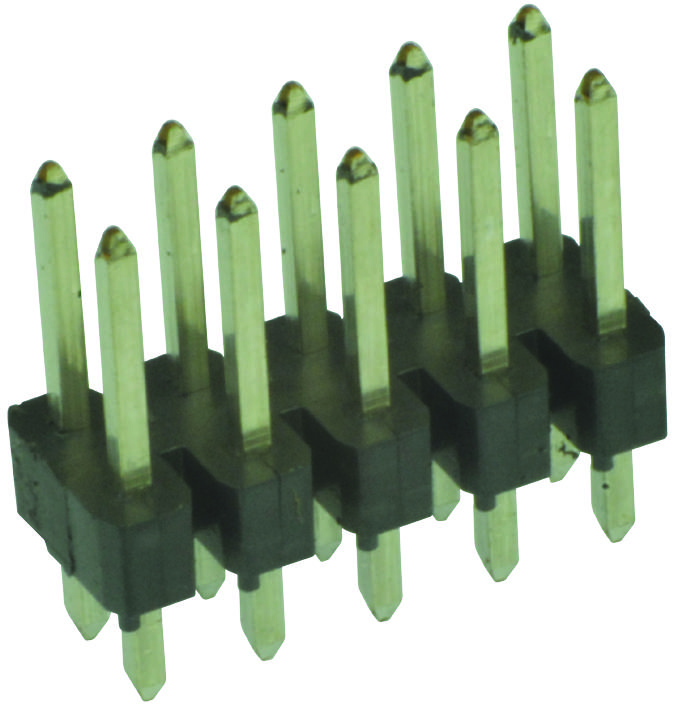

AMPHENOL COMMUNICATIONS SOLUTIONS 67996410HLF Unshrouded Header
The BergStik 2.54mm unshrouded headers are versatile connectors available in surface-mount, through-hole, press-fit, stacking, and pin-in-paste versions. Designed for single and double-row configurations with straight or right-angle options, these connectors support up to 72 positions and feature a breakaway design for customizable length. Made from high-temperature thermoplastic with gold or tin plating over nickel, they offer a current rating of 3A per contact, excellent insulation resistance, and withstand temperatures from -65°C to +125°C. Suitable for a wide range of electronic interconnect applications, including industrial, automotive, and consumer electronics, these headers provide reliable, reflow-compatible connections in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 67996410HLF Unshrouded Header Specifications:
- Housing: High-temperature thermoplastic, Black
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27μm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min.
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Mechanical Retention Force: 9N min.
- Applicable for wave, vapor-phase, and IR reflow soldering processes
- RoHS compliant according to EU Directive 2002/95/IEC
- Variety of configurations including straight, right angle, stackable, and pin-in-paste
- Available in single and double-row layouts with customizable lengths up to 65mm
Buy the FCI BergStik 67996410HLF – Reliable PCB Interconnects for Industrial Applications
Purchase the BergStik 2.54mm unshrouded header online today to ensure reliable, high-quality interconnections for your electronic assemblies. Perfect for industrial, automotive, and consumer electronics, this versatile header supports various mounting options, including SMT, THT, and press-fit. With a breakaway design for customization, a current rating of 3A per contact, and temperature resilience up to 125°C, it guarantees optimal performance. Easy to install, RoHS compliant, and compatible with multiple soldering processes, this connector offers a cost-effective solution for demanding applications.
Order your FCI BergStik 67996410HLF today and enjoy dependable, high-performance connections suitable for all your electronic projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 67996410HLF?
You can click on the BUY or RFQ button to purchase 67996410HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 67996410HLF?
You can download the 67996410HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 67996410HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
