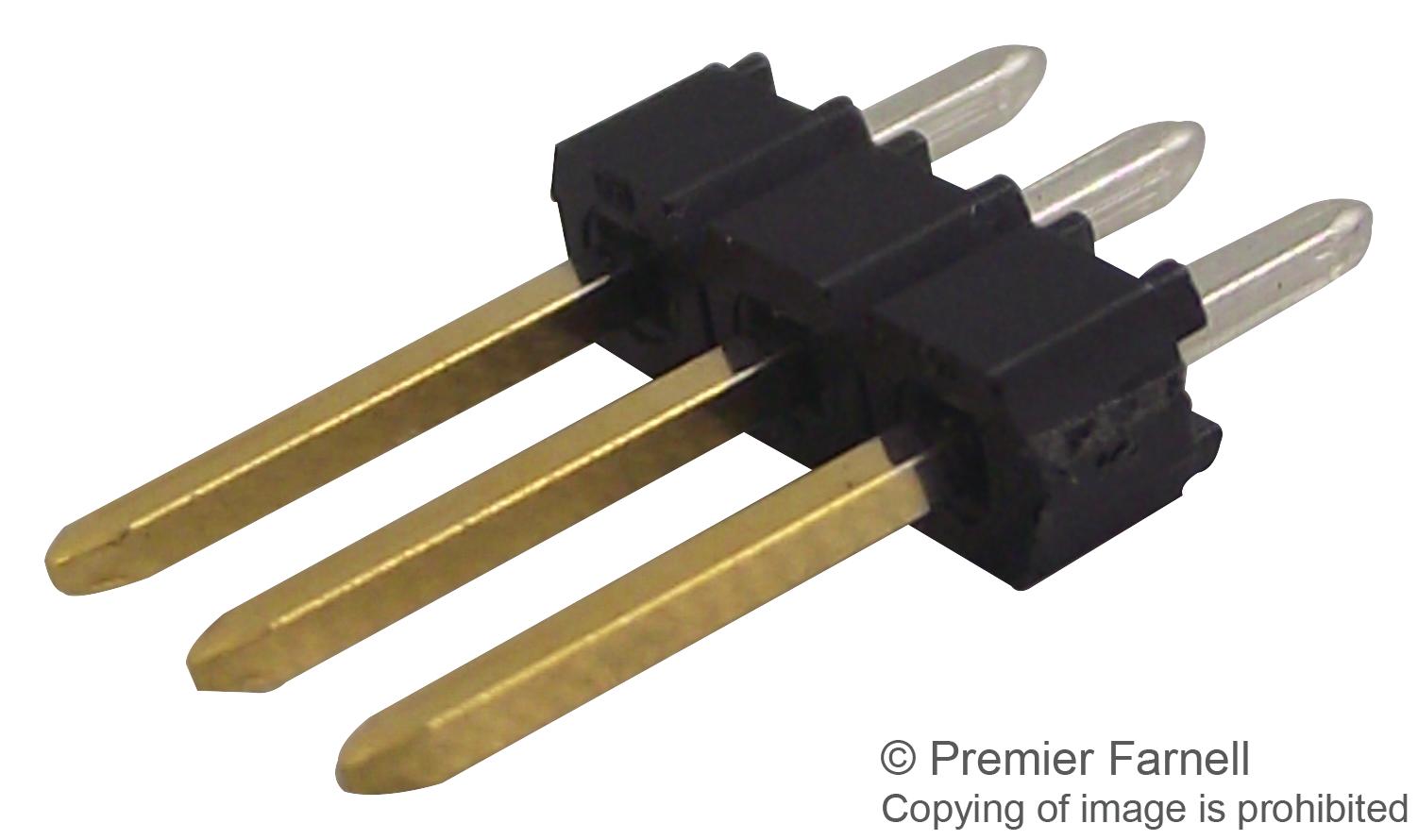

AMPHENOL COMMUNICATIONS SOLUTIONS 68001116HLF PCB Header
BergStik 2.54mm unshrouded headers are versatile connectors available in surface-mount, through-hole, press-fit, stacking, and pin-in-paste versions. Designed in single and double row formats, they offer flexible mounting options, including straight and right angle orientations, supporting applications from 2 to 72 positions. Made with high temperature thermoplastic housing, phosphor-bronze pins, and gold or tin plating over nickel, these headers ensure reliable electrical performance, reflow compatibility, and up to 100 mating cycles, making them ideal for board-to-board and wire-to-board interconnect solutions.
AMPHENOL COMMUNICATIONS SOLUTIONS 68001116HLF PCB Header Specifications:
- Housing: High temperature thermoplastic, Black
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27m Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Retention Force: 9N min.
- Compatible with wave, vapor-phase, IR reflow soldering
- Packaged in bags, optional tape-and-reel or tubes
- Supports up to 100 mating cycles
- Design includes vertical, right angle, stacking, and pin-in-paste variants
- Standard sizes support 2 to 72 positions
- Tinned or gold-plated contacts for enhanced conductivity and corrosion resistance
Buy the Fci BergStik 68001116HLF – Reliable PCB Header for Industrial Applications
Purchase the reliable BergStik 2.54mm unshrouded headers online to ensure high-quality, versatile interconnect solutions. Suitable for board-to-board, wire-to-board, and cable-to-board applications, these headers feature high-temperature thermoplastic housing, phosphor-bronze pins, and durable gold or tin plating. They support both SMT and THT mounting with optional stacking, right angle, and pin-in-paste configurations, capable of withstanding up to 100 mating cycles. Enjoy quick online ordering for a dependable, cost-efficient solution engineered for industrial electronics and automation systems.
Get Fci BergStik 68001116HLF today—built for precision, durability, and versatile mounting options.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68001116HLF?
You can click on the BUY or RFQ button to purchase 68001116HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68001116HLF?
You can download the 68001116HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68001116HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
