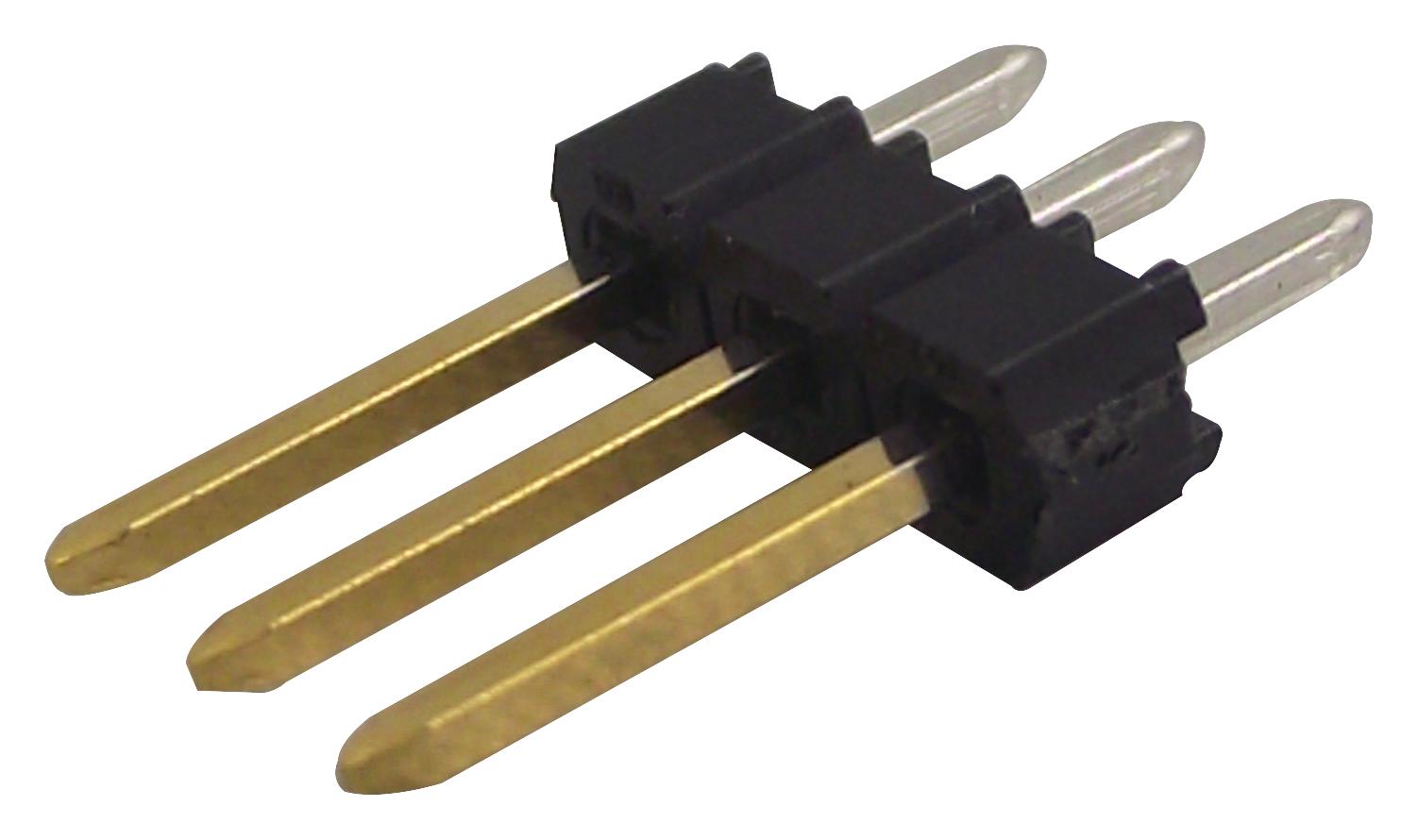

AMPHENOL COMMUNICATIONS SOLUTIONS 68001400HLF Unshrouded Header
The BergStik 2.54mm unshrouded headers are versatile connectors suitable for Board-to-Board, Wire-to-Board, and Cable-to-Board applications. Available in surface-mount, through-hole, press-fit, stacking, and pin-in-paste versions, these headers support both single and double rows in straight or right angle configurations. Constructed from high-temperature thermoplastic with gold or tin plating over nickel, they provide reliable electrical performance with a current rating of 3A per contact, operating temperature from -65°C to +125°C, and durability up to 100 mating cycles, meeting industry standards for industrial and automotive use.
AMPHENOL COMMUNICATIONS SOLUTIONS 68001400HLF Unshrouded Header Specifications:
- Housing: High temperature thermoplastic, Black
- Flammability Rating: UL94V-0
- Pin: Phosphor-bronze
- Plating: Gold or Tin over 1.27m Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Retention Force: 9N min.
- Compatible with wave, vapor-phase, and IR reflow soldering processes
- Supports standard sizes up to 72 positions
- RoHS compliant
- Packaging options include bags, tape-and-reel, and tubes
- Designed for up to 100 mating cycles
Buy the Buy FCI BergStik 2.54MM Unshrouded Header Part Number 68001400HLF Online
Enhance your electronic projects with the FCI BergStik 2.54mm unshrouded header, ideal for various interconnect applications. This versatile component supports multiple configurations including SMT, THT, and press-fit options, offering high-temperature thermoplastic construction with gold or tin plating for superior performance. Designed to withstand mechanical stress and operate reliably between -65°C and +125°C, it is perfect for industrial automation, automotive, and consumer electronics. Easily assembled, RoHS compliant, and available in standard sizes, this header ensures robust connectivity and ease of use in manufacturing or field repairs.
Get FCI BergStik 68001400HLF today—built for reliable connections and long-lasting durability in high-temperature environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68001400HLF?
You can click on the BUY or RFQ button to purchase 68001400HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68001400HLF?
You can download the 68001400HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68001400HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
