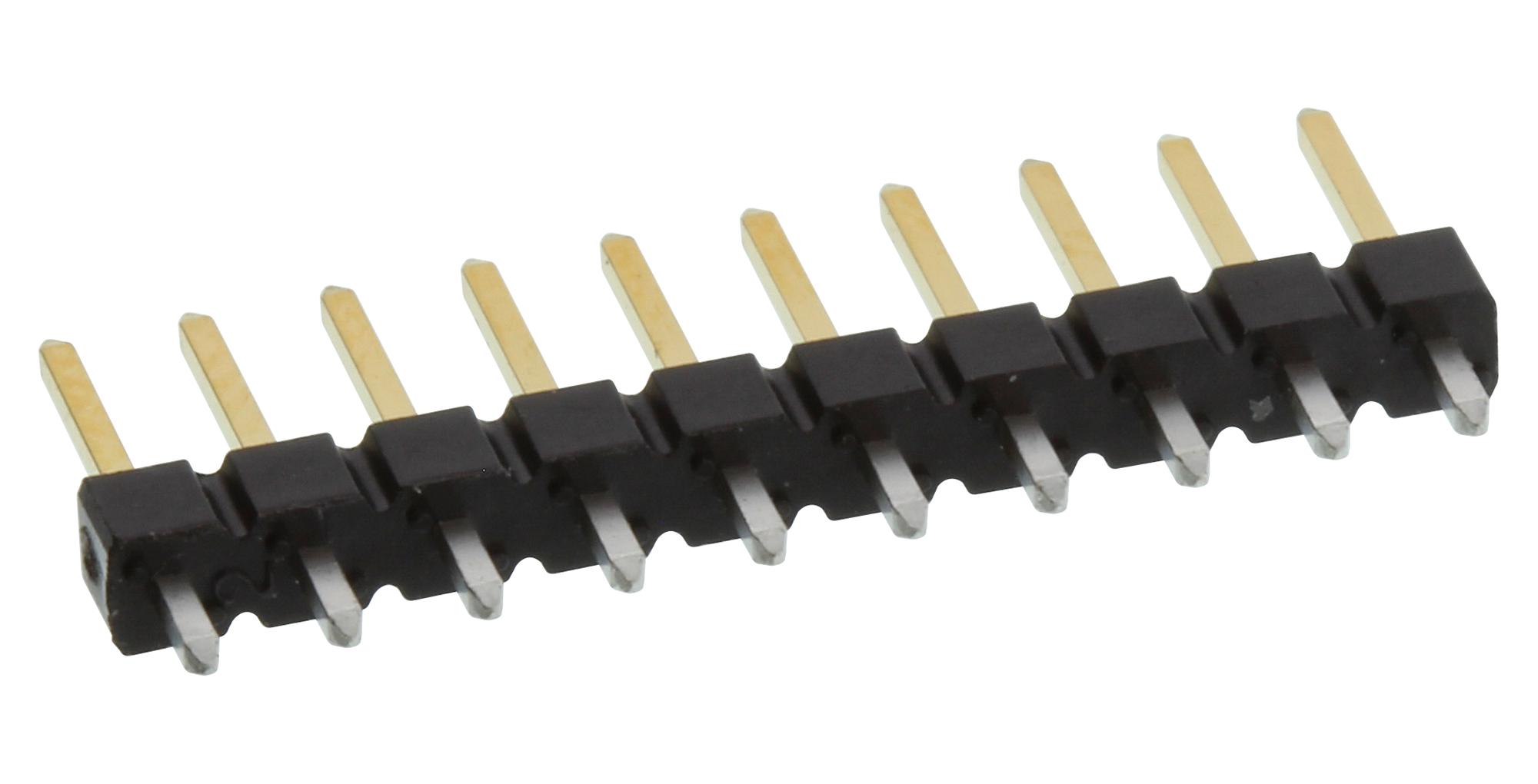

AMPHENOL COMMUNICATIONS SOLUTIONS 68002102HLF Unshrouded Header
The BergStik 2.54mm unshrouded headers are versatile connectors designed for various electronic interconnect applications, including vertical, right-angle, stacking, and pin-in-paste configurations. Made from high temperature thermoplastic with UL94V-0 flammability rating, these headers feature phosphor-bronze pins with gold or tin over nickel plating, ensuring reliable electrical performance up to 3A per contact. Suitable for wave, vapor-phase, and IR reflow soldering, they offer a cost-effective, RoHS-compliant solution with durability for up to 100 mating cycles, supporting industrial and automotive markets with robust environmental resistance.
AMPHENOL COMMUNICATIONS SOLUTIONS 68002102HLF Unshrouded Header Specifications:
- Housing Material: High temperature thermoplastic, Black
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating Options: Gold over 1.27μm Nickel or Tin over 1.27μm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C (standard), up to +130°C (pin-in-paste)
- Mechanical: Retention force ≥ 9N, Retentive leg insertion force >44.48N max, Retentive leg board retention: 2.22N
- Packaging: Bags, optional tape-and-reel or tubes
- Processing: Compatible with wave, vapor-phase, IR reflow soldering
- Durability: Supports up to 100 mating cycles
- Dimensions: modular configurations from 2 to 72 positions, standard sizes with optional custom lengths
- Certifications: RoHS compliant, UL94V-0 flammability rating
Buy the FCI Series BergStik 2.54mm Unshrouded Header: 68002102HLF
Order the FCI BergStik 2.54mm unshrouded header 68002102HLF online today to ensure your electronic projects benefit from high reliability, RoHS compliance, and versatile configurations. Designed for ease of installation using wave, vapor-phase, or IR reflow processes, these headers support critical industrial, automotive, and consumer electronics applications. Durable and cost-effective, they offer robust mechanical and electrical performance with up to 100 mating cycles, making them a perfect choice for board-to-board, wire-to-board, and cable-to-board interconnections. Purchase now for quick delivery and trusted quality.
Get FCI BergStik 2.54mm unshrouded header 68002102HLF today—built for reliable connections in electronic assemblies and industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68002102HLF?
You can click on the BUY or RFQ button to purchase 68002102HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68002102HLF?
You can download the 68002102HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68002102HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
