AMPHENOL COMMUNICATIONS SOLUTIONS 101625821134141LF high-speed connector
The Conan Lite 1.00mm connector series offers a secure, high-speed, and reliable board-to-board connection solution suitable for a wide range of electronic applications. Featuring robust metal down features, audible
AMPHENOL COMMUNICATIONS SOLUTIONS 101625821134141LF high-speed connector Specifications:
- Housing: High-temperature thermoplastic LCP
- Terminal Base Material: Copper alloy
- Plating: Gold flash on contact area
- Current Rating: 1.0A continuous
- Contact Resistance: 30mΩ max.
- Withstanding Voltage: 500V AC RMS 60Hz
- Durability: 30 cycles
- Mating Force: 125g per contact max.
- Un-mating Force: 35g per contact min.
- Operating Temperature Range: -55°C to +125°C
- Mating Positions: 9 to 69
- Mating Heights: 4.15 to 7.5mm
- Packaging: Tape and Reel
- Product Specification: GS-12-0977

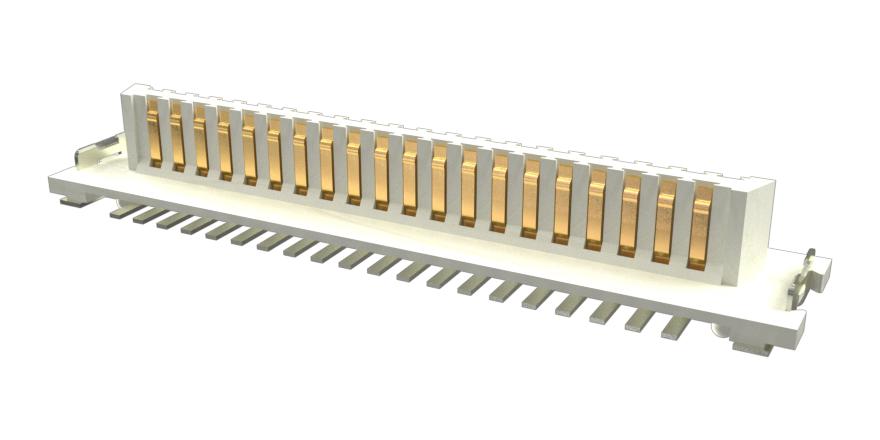

Buy the Amphenol 101625821134141LF – Reliable Board-to-Board Connection for Industrial Applications
Experience the reliability and high performance of the Amphenol Conan Lite 1.00mm connector, designed for fast data transmission and secure connections in electronic devices. Manufactured with robust materials, it supports up to 1.0A current and withstands a wide temperature range from -55°C to +125°C. Suitable for PCB applications requiring 9 to 69 positions, with precise polarization and protective features. Packaged in tape and reel for easy automation, this connector is ideal for industrial control units, LED lighting, servers, and more—ensuring durable, reliable operation in demanding environments.
Get Amphenol 101625821134141LF today—built for high-speed data and long-lasting durability in electronic and industrial settings.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 101625821134141LF?
You can click on the BUY or RFQ button to purchase 101625821134141LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 101625821134141LF?
You can download the 101625821134141LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 101625821134141LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
