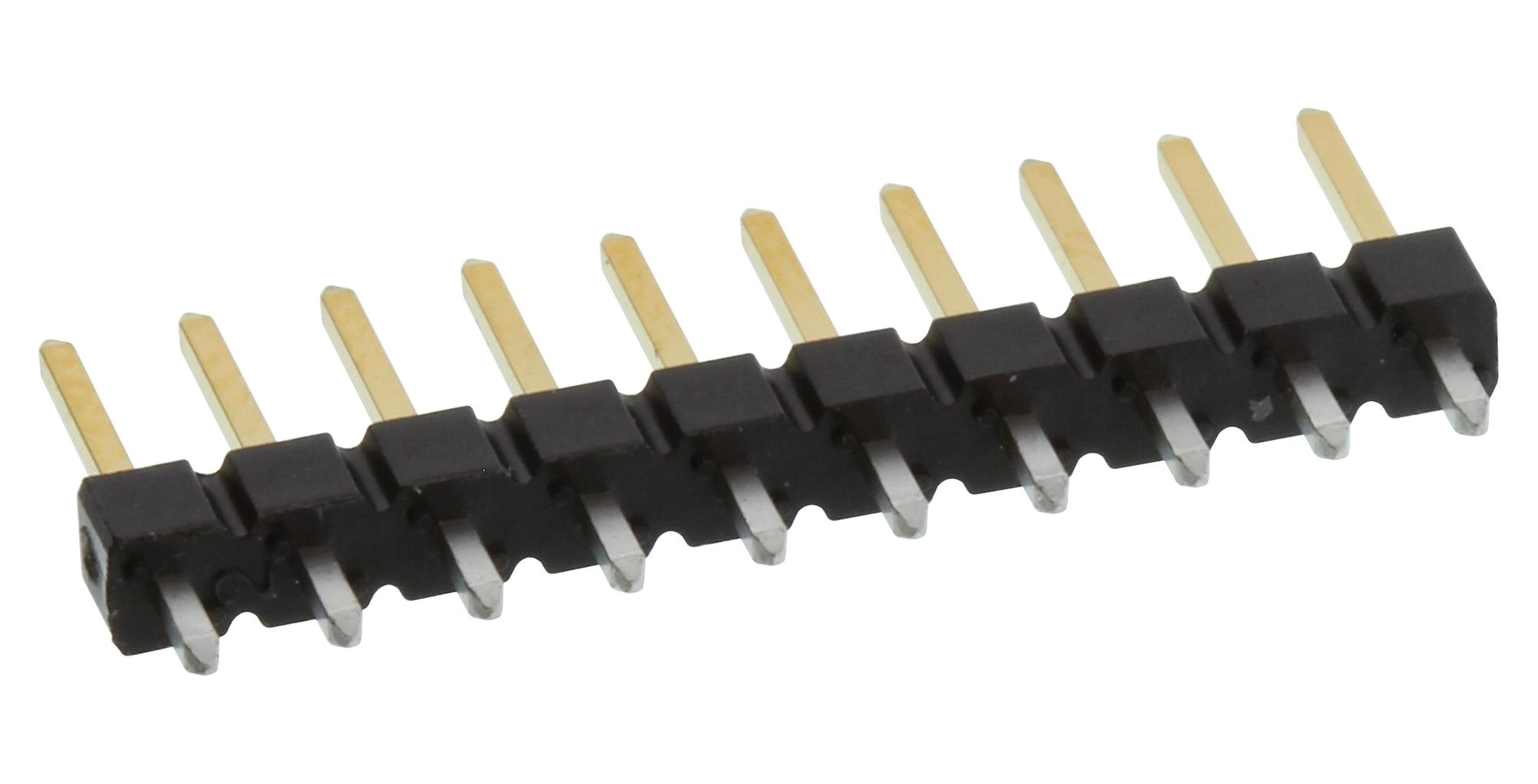

AMPHENOL COMMUNICATIONS SOLUTIONS 68002203HLF 2.54mm Unshrouded Header
BergStik 2.54mm unshrouded headers are versatile connectors available in surface-mount, through-hole, press-fit, stacking, and pin-in-paste versions. Designed for high-temperature applications, these headers feature durable phosphor-bronze pins with gold or tin plating over nickel, supporting up to 3A per contact. Suitable for board-to-board, wire-to-board, and cable-to-board interconnections, they are RoHS compliant, operate from -65°C to +125°C, and withstand up to 100 mating cycles. Compatible with various soldering methods, these cost-efficient headers ensure reliable electrical performance in electronic assemblies.
AMPHENOL COMMUNICATIONS SOLUTIONS 68002203HLF 2.54mm Unshrouded Header Specifications:
- Housing: High-temperature thermoplastic, Black
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27μm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Mechanical Performance: Retention Force 9N min, Retentive Leg Insertion Force >44.48N maximum
- RoHS compliant according to EU Directive 2002/95/IEC
- Compatible with wave, vapor-phase, IR reflow soldering processes
- Packaging: Bags, optional tape-and-reel or tube with pick-up cap
- Part Number: 68002203HLF
Buy the Buy FCI BergStik 2.54MM Part Number 68002203HLF Online
Order the FCI BergStik 2.54mm unshrouded headers today to ensure durable, reliable connections for your electronic projects. These headers support THT, SMT, press-fit, stacking, and pin-in-paste processes, making them suitable for a wide range of applications. Engineered with high-temperature thermoplastic and plated with gold or tin over nickel, they offer excellent electrical performance, RoHS compliance, and are capable of withstanding extreme temperatures from -65°C to +125°C. Their cost-effective design and ability to be cut or broken to length provide flexible solutions for your assembly needs.
Get FCI BergStik 2.54MM 68002203HLF today—designed for high reliability, temperature resistance, and versatile interconnection in electronics.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68002203HLF?
You can click on the BUY or RFQ button to purchase 68002203HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68002203HLF?
You can download the 68002203HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68002203HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
