AMPHENOL COMMUNICATIONS SOLUTIONS HSDNCRPPCB12A Automotive Connector
The HSD+0 right-angle low-profile connector features a high-temperature thermoplastic housing and dielectric for durability. It is color-coded according to automotive standards for easier installation. The design includes a high retention force to prevent damage during incorrect disconnection and is designed for crimp connection, suitable for automated assembly processes. It resists reflow soldering temperatures, with a contact resistance of up to 20 milliohms per pin and insulation resistance exceeding 100 megaohms at 500 VDC. Operating from -40°C to +105°C, it is USCAR-2 and ISO/TS compliant, ideal for automotive uses.
AMPHENOL COMMUNICATIONS SOLUTIONS HSDNCRPPCB12A Automotive Connector Specifications:
- Housing: High Temperature Polymer, UL94V-0
- Dielectrics: High Temperature Polymer, UL94V-0
- Contacts: Copper Alloy
- Die Casting: Zinc Alloy
- Cover: Zinc Alloy
- Baffle: Stainless Steel
- Insertion Force: 35N max.
- Extraction Force without Locking Latch: 5N min.
- Durability: 25 Cycles
- Contact Resistance: 20 mQ max. per pin
- Isolation Resistance: Exceed 100 MQ at 500 VDC
- Dielectric Withstanding Voltage: AC 250 Vrms per minute
- Temperature Range: -40°C to +105°C
- RoHS and Low Halogen compliant
- Reflow Solder Resistance
- Color Coding: Automotive standards
- Design: High retention force, scoop proof, and primary-secondary lock

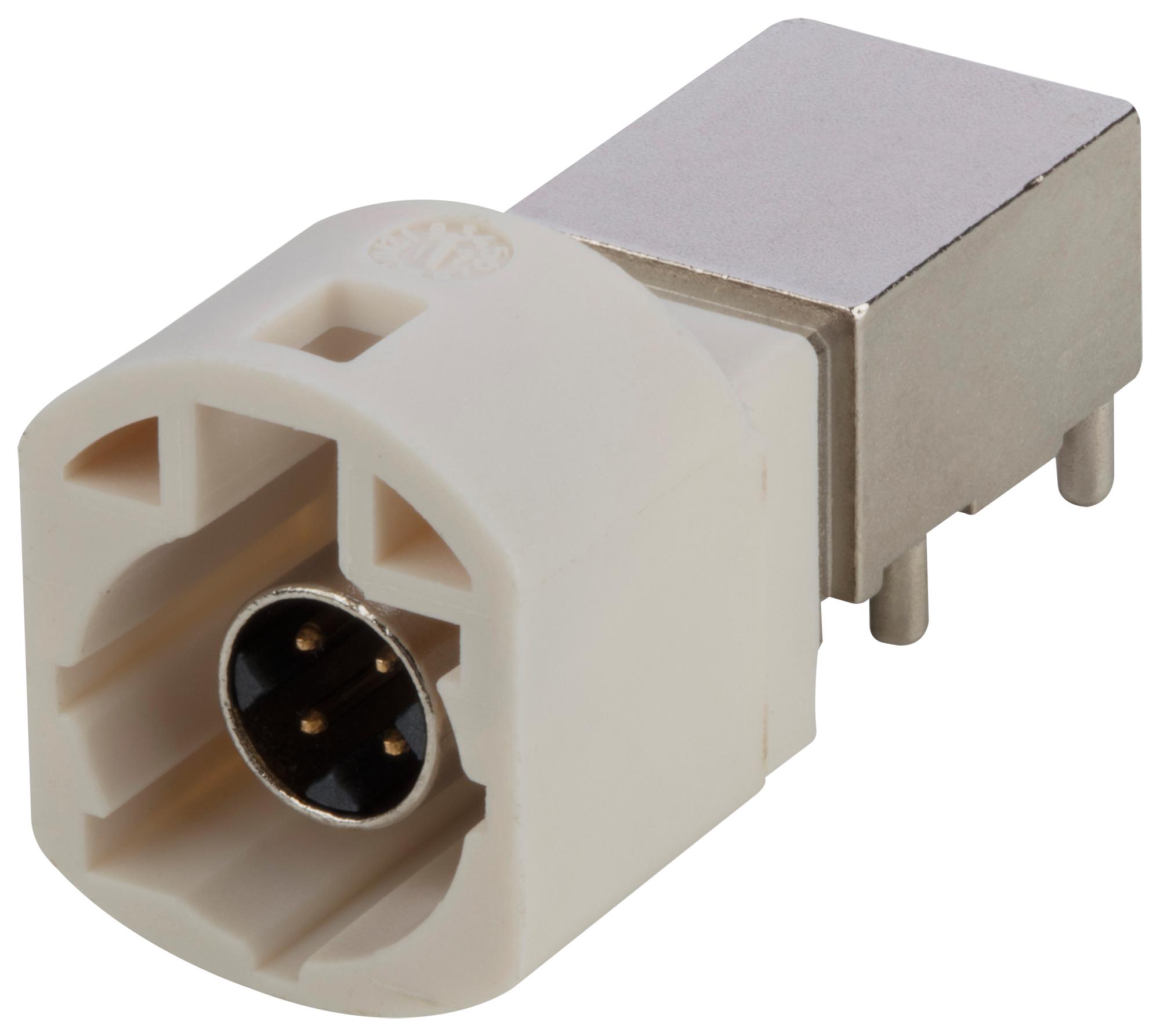

Buy the Buy Amphenol HSD Connector Part Number HSDNCRPPCB12A Online
Secure your vehicle’s electronic systems with the high-performance automotive connector from Amphenol. Designed for durability, high-temperature resistance, and compliance with USCAR-2 standards, it features a robust housing, high retention force, and supports automated manufacturing. Ideal for low-voltage digital signals, including LVDS, USB, and camera modules, it ensures reliable connections with low contact resistance and excellent insulation properties. Enhance your automotive assembly with this connector’s efficient, easy-to-mate design, and enjoy long-lasting, vibration-resistant performance.
Buy Amphenol HSDNCRPPCB12A now and experience unmatched reliability and performance in automotive electronic connections.
