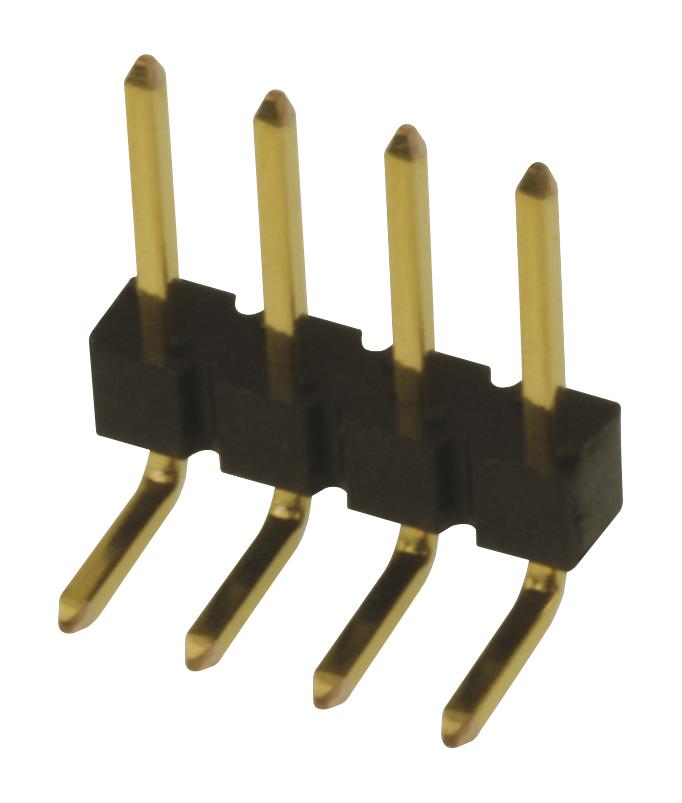

AMPHENOL COMMUNICATIONS SOLUTIONS 68016404HLF Unshrouded Header
The BergStik 2.54mm unshrouded headers are versatile connectors designed for various electronic applications, including board-to-board and wire-to-board interconnections. Available in SMT, THT, stacking, and pin-in-paste formats, these headers feature high-temperature thermoplastic housing with UL94V-0 flammability rating, phosphor-bronze pins, and gold or tin plating over nickel. Rated for 3A per contact, they offer excellent insulation resistance of 5000MQ, dielectric withstand voltage of 1500V, and operate from -65°C to +125°C. Suitable for manufacturing processes like wave, vapor-phase, and IR reflow soldering, they support up to 100 mating cycles, providing reliable, cost-efficient solutions for complex electronic assemblies.
AMPHENOL COMMUNICATIONS SOLUTIONS 68016404HLF Unshrouded Header Specifications:
- Housing Material: High temperature thermoplastic, Black
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27m Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min.
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Retention Force: 9N min.
- Soldering Compatibility: Wave, vapor-phase, IR reflow
- Up to 100 mating cycles supported
- Available in SMT, THT, stacking, pin-in-paste formats
- Package Options: Bags, Tape-and-Reel, Tubes
- RoHS compliant
- Designed for high reliability and cost-effective assembly in electronic devices
Buy the BergStik 2.54MM – Reliable Unshrouded Headers for Industrial Applications
Order BergStik 2.54mm unshrouded headers today and enhance your electronic assembly line with our high-quality, cost-efficient connectors. Suitable for board-to-board, wire-to-board, and SMT applications, these headers feature robust thermoplastic housings, gold or tin plated contacts, and support up to 100 mating cycles. They comply with RoHS standards and are compatible with various soldering techniques, ensuring reliability and performance in industrial and automotive markets. Secure your supply now and benefit from quick online purchasing for efficient project timelines.
Buy BergStik 2.54MM unshrouded headers now and experience reliable, versatile interconnect solutions suitable for a wide range of industrial electronic applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68016404HLF?
You can click on the BUY or RFQ button to purchase 68016404HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68016404HLF?
You can download the 68016404HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68016404HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
