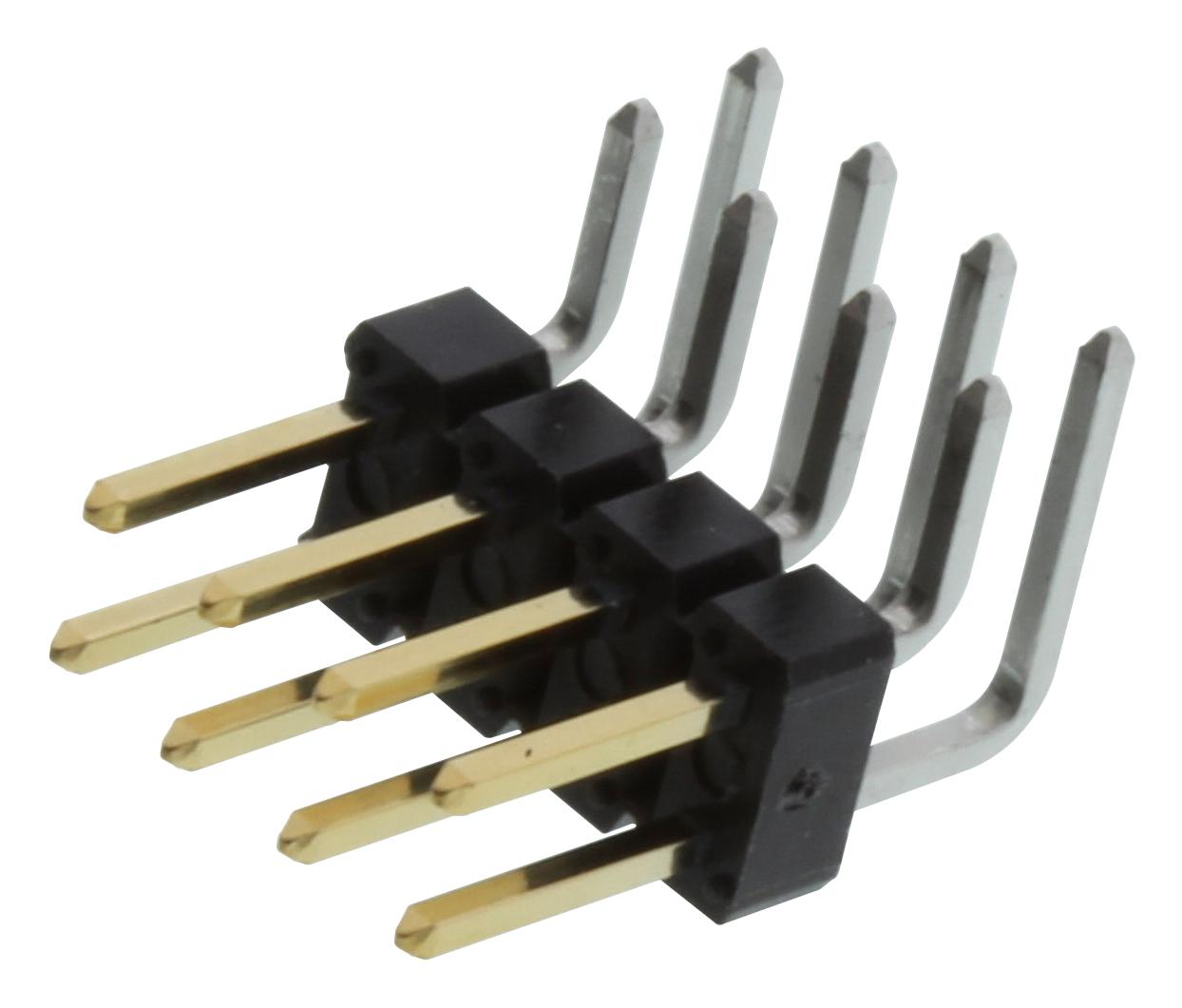

AMPHENOL COMMUNICATIONS SOLUTIONS 68021108HLF Interconnect Header
The BergStik 2.54mm unshrouded headers provide versatile interconnect solutions for electronic equipment, available in vertical, right angle, stacking, and pin-in-paste variants. These connectors feature a high-temperature thermoplastic housing with UL94V-0 flammability rating, phosphor-bronze pins plated with gold or tin over nickel, and support up to 100 mating cycles. Suitable for wave, vapor-phase, and IR reflow soldering, these headers are designed for durability, high current capacity of 3A per contact, and operating temperatures from -65°C to +125°C, offering reliable and flexible board-to-board or wire-to-board connections.
AMPHENOL COMMUNICATIONS SOLUTIONS 68021108HLF Interconnect Header Specifications:
- Housing: High temperature thermoplastic, UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27m Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ minimum
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature Range: -65°C to +125°C
- Retention Force: 9N minimum
- Supports wave, vapor-phase, IR reflow soldering
- Available in single, double, stack, and pin-in-paste variants
- Maximum mating cycles: 100
Buy the Buy BergStik 2.54mm Unshrouded Headers Part Number 68021108HLF Online
Discover the BergStik 2.54mm unshrouded headers, offering flexible interconnect solutions for board-to-board and wire-to-board applications. Designed with high-temperature thermoplastic housing, gold or tin plating over nickel, these connectors support up to 100 mating cycles, ensuring durability and reliability. Suitable for wave, vapor-phase, and IR reflow soldering, they cater to various manufacturing processes. With a current capacity of 3A per contact and temperature tolerance from -65°C to +125°C, they are ideal for industrial, automotive, and electronic device assembly, providing excellent performance and versatile use.
Order your BergStik 2.54mm unshrouded connector with high-temperature thermoplastic housing today and ensure durable, reliable interconnection for your electronic projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68021108HLF?
You can click on the BUY or RFQ button to purchase 68021108HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68021108HLF?
You can download the 68021108HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68021108HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
