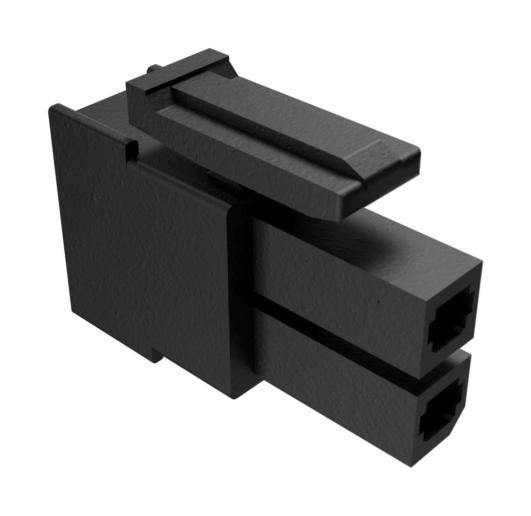

AMPHENOL COMMUNICATIONS SOLUTIONS 1014270702LF Power Connector
The Minitek Pwr 5.70mm connector system is a high-current, reliable power solution designed for wire-to-board applications. It supports currents up to 23A per contact with wire gauges from 16 to 12 AWG, offering polarized mating to prevent misconnection. Constructed with UL94V-0 flammability-rated materials, it ensures safe, durable operation across temperatures from -40°C to 120°C. The system features snap-in locking, corrosion resistance, and complies with international standards, making it ideal for industrial equipment, household appliances, and telecom devices. Its versatile design includes dual-row configurations for various electrical needs.
AMPHENOL COMMUNICATIONS SOLUTIONS 1014270702LF Power Connector Specifications:
- Current Rating: Up to 23A per contact
- Wire Range: 16-12 AWG
- Operating Temperature: -40°C to 120°C (gold plating), -40°C to 105°C (tin plating)
- Material: High-conductivity copper, UL94V-0 LCP, Nylon 66
- Flammability Rating: UL94V-0, V-2
- Voltage Rating: 600V AC/DC
- Contact Resistance: 10mΩ max. (tin plated), 5mΩ max. (gold plated)
- Durability: Up to 200 mating cycles
- Mating Force: 6.8N (tin plated), 6.0N (gold plated) per circuit
- Unmating Force: 6.5N (tin plated), 5.6N (gold plated) per circuit
- Insulation Resistance: ≥1000 MΩ
- Dielectric Withstand Voltage: 2200V AC
- Packaging: Reels, bags, tape, and reel options
- Approval: UL (E66906), TUV (B171234414032)
Buy the Amphenol 1014270702LF – Reliable Power Connector for Industrial Applications
Secure your electrical connections with the Amphenol Power Connector, supporting up to 23A per contact with wire gauges from 16 to 12 AWG. Its polarized mechanism prevents mis-mating, while UL94V-0 rated flame-retardant materials ensure safety and durability across a broad temperature range. Suitable for various industrial and household applications, this connector features quick locking, corrosion resistance, and complies with international safety standards. Easy to install with multiple configurations, it's an essential component for reliable power distribution in complex systems.
Buy Amphenol 1014270702LF now and experience unmatched high-current performance and secure wiring solutions.
