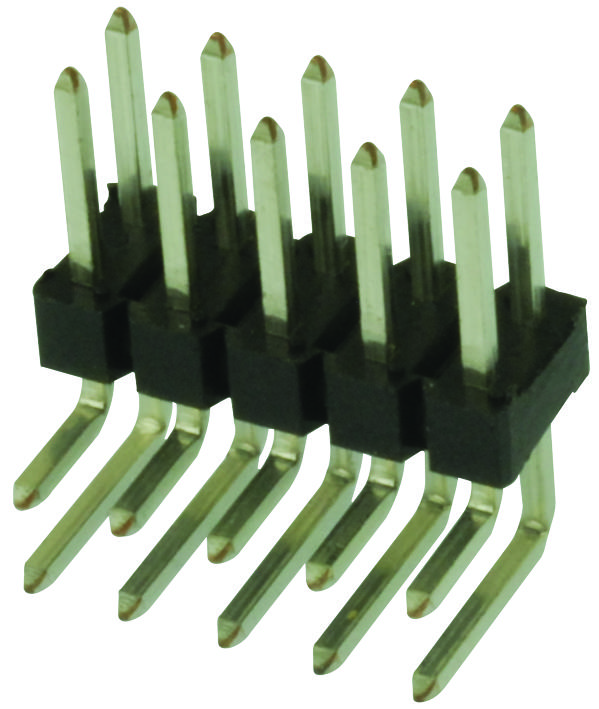

AMPHENOL COMMUNICATIONS SOLUTIONS 68021410HLF Unshrouded Header
The BergStik II 68021 series unshrouded header features a breakaway design, allowing each connector to be cut or broken to length to suit various application profiles. It supports a maximum current of 3A per contact and is available in single and double row configurations, with options for straight or right-angle mounting, ranging from 2 to 72 positions. This range includes BergStik 2.54mm unshrouded vertical headers with 0.25µm plating, designed for up to 100 mating cycles. The product provides reliable board-to-board interconnect solutions suitable for mezzanine applications, offering flexible stack height configurations. Made from high-temperature thermoplastic material, these headers feature variable spacing heights for stacking, dual entry capability for top or bottom mating, and include a blank 0.64mm square contact with four equal-quality surfaces. They have a standoff design with duplex plating, tin-lead plating in press-fit areas, optional retention legs, and are reflow compatible. Their design facilitates easy cleaning of soldering residues, easy pin insertion onto PCBs, high retention force, and consistent layout for THT and press-fit applications. These headers are ideal for use in communications and networking equipment, consumer electronics, computers and peripherals, industrial systems, sensing and instrumentation, and medical devices.
AMPHENOL COMMUNICATIONS SOLUTIONS 68021410HLF Unshrouded Header Specifications:
- Housing: High-temperature thermoplastic, black
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27µm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Retraction Force: 9N min.
- Dimensions: Supports 2 to 72 positions, length varies accordingly, with optional stack height adjustments
- Design features: Breakaway, variable spacing height, dual entry, duplex plating, optional retention legs
- Compatibility: Reflow soldering, wave, vapor-phase, IR processes
- Certification: RoHS compliant
Buy the FCI 68021 Unshrouded Header – Reliable Board-to-Board Interconnect for Industrial Applications
Enhance your electronic assemblies with the reliable BergStik unshrouded headers. Designed for maximum flexibility, these headers feature breakaway design, dual entry capabilities, and are compatible with reflow soldering. Ideal for mezzanine, industrial, and consumer electronics, the headers support up to 100 mating cycles, with optional stacking heights for versatile configurations. Crafted from high-temperature thermoplastic with duplex plating, they ensure durability, easy cleaning, and secure PCB attachment. Purchase online today to benefit from high-quality interconnect solutions for all your placement needs.
Get FCI 68021 today—built for precision and long-lasting durability in versatile electronic interconnections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68021410HLF?
You can click on the BUY or RFQ button to purchase 68021410HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68021410HLF?
You can download the 68021410HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68021410HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
