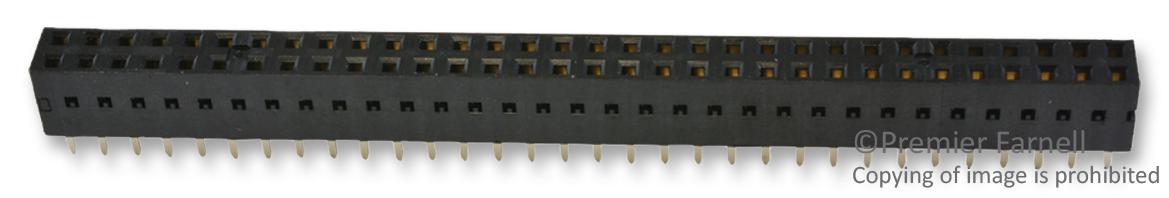

AMPHENOL COMMUNICATIONS SOLUTIONS 68683330LF Wire-to-Board Connector
The product is a high-reliability wire-to-board connector with dual-beam contacts for low insertion force, stackable design, and excellent signal integrity. Made from high-temperature thermoplastic with gold or tin plating over nickel, it offers a current rating of up to 3A per contact, with insulation resistance of 1x 10^6MQ. It features a UL94V-0 flammability rating, operating temperature range from -65°C to +125°C, and allows up to 200 mating cycles. Suitable for dense electronic assemblies, it provides easy mating and disassembly for maintenance and testing. Certifications include RoHS compliance, and it supports wave soldering processes.
AMPHENOL COMMUNICATIONS SOLUTIONS 68683330LF Wire-to-Board Connector Specifications:
- Housing: High temperature thermoplastic, UL94V-0
- Pin Material: Copper alloy, Plating: Gold or tin over nickel
- Current rating: 3A max. per contact
- Insulation resistance: 1x 10^6MQ min
- Contact resistance: 15MQ max. initial, 20MQ max. after environmental tests
- Dielectric withstanding voltage: 1000V RMS
- Operating temperature range: -65°C to +125°C
- Mating cycles: 200
- Insertion force: 1.50 N (150gf) max per gold contact
- Withdrawal force: 0.30 N (30gf) min per gold contact
- Insertion depth: 3.6mm to 6.81mm depending on type
- Compatible with wave soldering, vapor-phase, and IR reflow soldering
- RoHS compliant, UL94V-0 flammability rating
- Packaging options: Plastic boxes, tubes, tape-and-reel
- Environmental ratings: IP-rated for temperature and humidity
- Certification: RoHS, UL listed, IEC compliance
Buy the Buy FCI DUBOX™ Shrouded Headers Part Number 68683330LF Online
Enhance your electronic assembly with the high-quality FCI DUBOX™ wire-to-board connector, featuring dual-beam contacts, stackable design, and excellent signal integrity. Made from high-temperature thermoplastic with gold or tin plating over nickel, it supports up to 3A current, with a temperature range from -65°C to +125°C. Designed for dense layouts, it offers reliable mating cycles and easy maintenance. Perfect for automation, industrial, and consumer electronics, this RoHS-compliant connector ensures durability, safety, and compatibility with various soldering processes for effortless integration into your projects.
Order your FCI DUBOX™ Series68683330LF connector today and enjoy dependable quality for your electronic projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68683330LF?
You can click on the BUY or RFQ button to purchase 68683330LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68683330LF?
You can download the 68683330LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68683330LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
