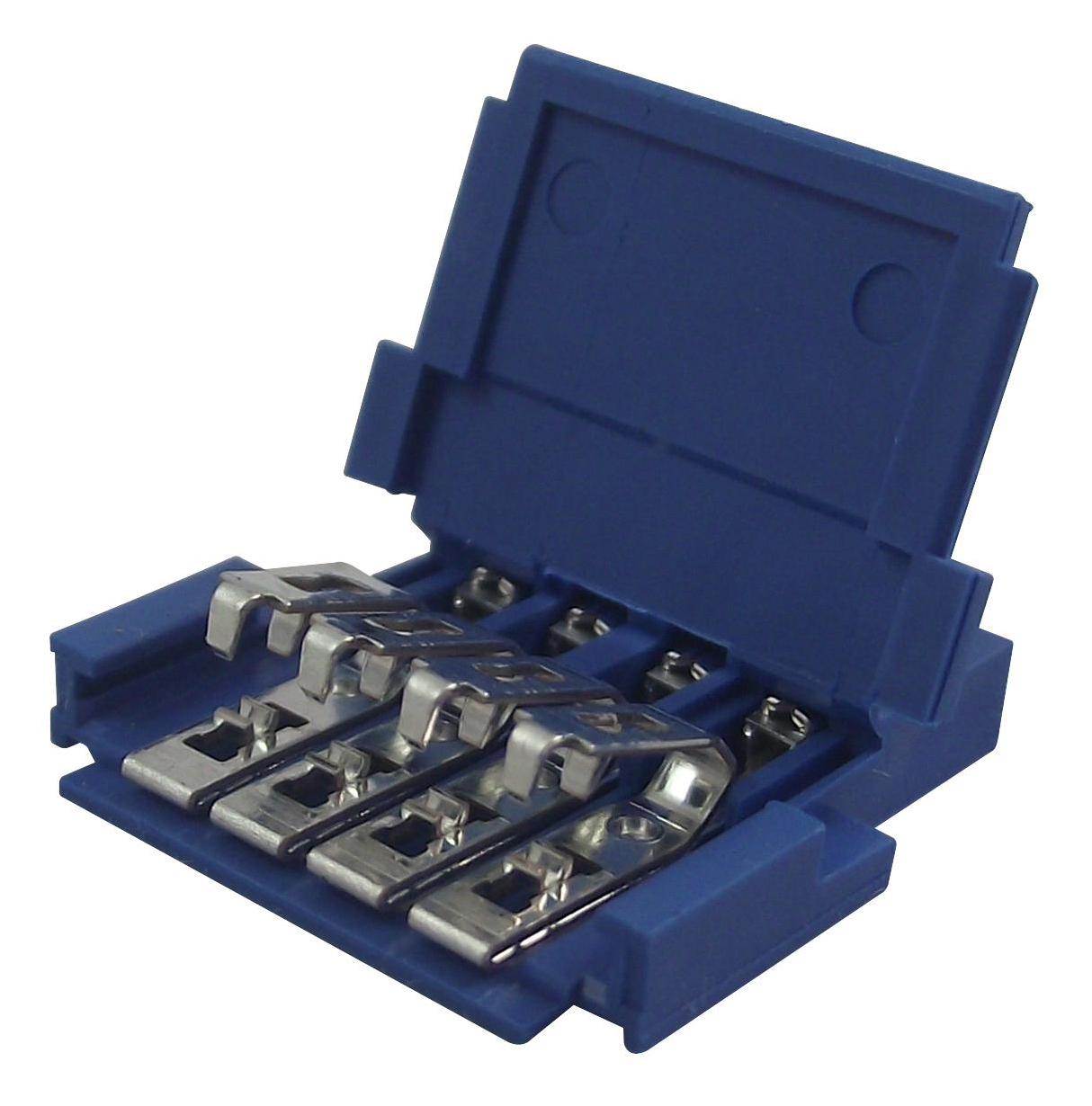

AMPHENOL COMMUNICATIONS SOLUTIONS 65801004LF Flexible Circuit Connector
The CLINCHER™ connector system offers reliable, gas-tight connections for flexible circuitry including FFC, FPC, and CIC. Designed for low-cost mass termination, it features a clinch termination process, highly-reliable Mini PV™ contacts, and polarization options for proper alignment. Available in various series with 2 to 34 positions, these connectors are suited for appliances, medical devices, industrial, and POS applications. The system includes receptacles and pin connectors with options for gold or lead-free tin plating, ensuring durability and compliance with environmental standards. Suitable for high-volume manufacturing and critical electronic connections.
AMPHENOL COMMUNICATIONS SOLUTIONS 65801004LF Flexible Circuit Connector Specifications:
- Housing Material: Polypropylene UL 94 V-0, Blue
- Contact Body Material: Cupro-nickel or Phosphor Bronze
- Contact Spring Material: Beryllium Copper
- Plating Options: 3u Gold/GXT or 10u lead-free
- Contact Resistance: 10 mO max, after environmental exposure 20 mO max
- Insulation Resistance: 5000 MO min
- Withstanding Voltage: 1000 VAC RMS
- Current Rating: 2.0 amps per contact
- Mating and Un-mating Force: 300 grams max per contact
- Latch Retention: ≥4 lbs
- Contact Retention: ≥30 grams per contact
- Cable Specifications: IPC Standard, FC-220 B type A or B, tolerance class IV
- Cable Thickness: 0.33 mm (0.013 in) max including insulation
- Conductor Thickness: 0.076 +/- 0.013 mm
- Conductor Width: 1.57 +/- 0.07 mm
- Cable Insulation Material: Mylar® or KAPTON® Polyimide
- Dimensions: Fit for flat flexible cable with 0.100 inch pitch
- Environment: Suitable for applications requiring gas-tight and contamination-free connections
Buy the FCI Series Clincher Flexible Circuit Connectors: 65801
Purchase the FCI Clincher flexible circuit connectors online today to ensure secure, gas-tight, and contamination-free connections for your electronic assemblies. Designed for high reliability and quick assembly, these connectors are ideal for medical, industrial, and consumer electronics. Featuring options for gold or lead-free tin plating, they deliver durability and excellent electrical performance. The system supports high-volume production with easy mass termination techniques, reducing costs and assembly time. Order now and enhance the reliability of your electronic projects with FCI’s proven connector technology.
Get FCI 65801 today—built for reliable, gas-tight connections in flexible circuitry applications.
