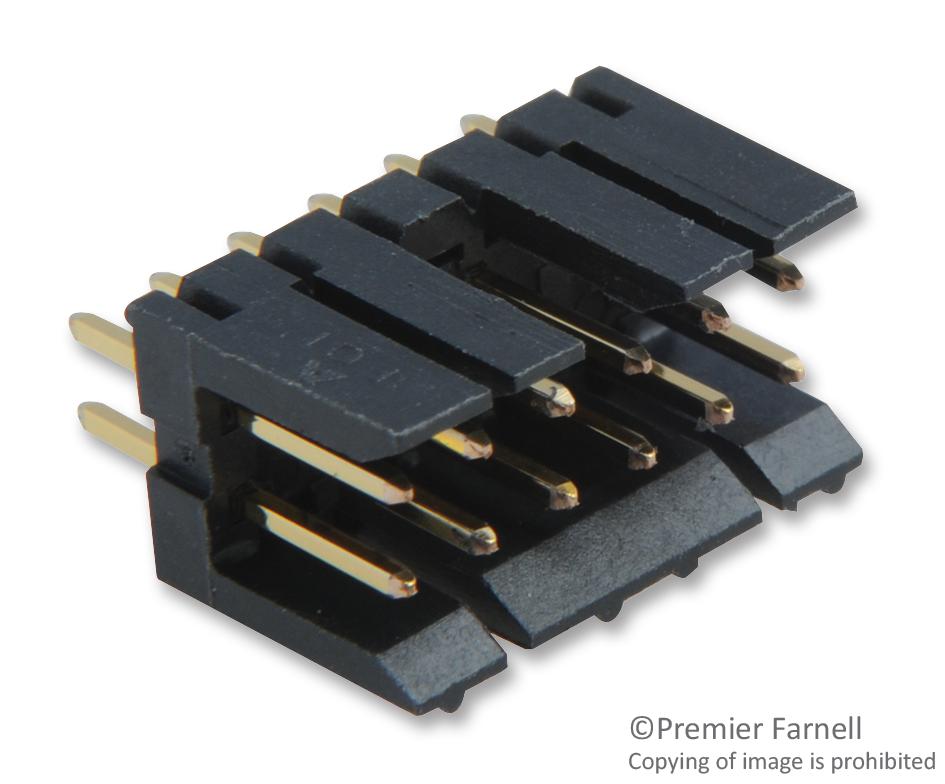

AMPHENOL COMMUNICATIONS SOLUTIONS 69168112HLF Wire-to-Board Connector
The PV wire-to-board connector system offers high reliability and durability for various electronic applications. Featuring dual-metal receptacle contacts, it maintains consistent contact pressure over 1000 cycles, and includes options such as shrouded headers and MINI-LATCH housings for enhanced retention and polarization. Suitable for industrial, medical, automotive, data, and military uses, it supports wire sizes up to 1.52mm and features gold or tin plating for excellent electrical performance. Engineering design allows customization with different spring forces, making it an ideal choice for demanding electronic assemblies and power management modules.
AMPHENOL COMMUNICATIONS SOLUTIONS 69168112HLF Wire-to-Board Connector Specifications:
- Contact material: Brass body, beryllium copper spring
- Contact plating: Gold or lead-free pure tin over nickel
- Housing material: Modified polyphenylene oxide UL94V-0 and glass-filled nylon UL94V-0
- Current rating: 3.0A with 32 AWG wire, with de-rating for larger wires
- Withstanding voltage: 1000V RMS
- Insulation resistance: >10000MQ (wire connector), >5000MQ (header)
- Contact resistance: <2mQ
- Mating force: 450g (high spring), 100g (ultra-high spring)
- Un-mating force: 75g (high spring), 175g (ultra-high spring)
- Temperature range: -40°C to +105°C
- Durability: Up to 1000 cycles
- Maximum wire diameter: 1.52mm
- RoHS compliant parts available with LF suffix
Buy the Buy FCI Wire-to-Board Connector Part Number 69168112HLF Online
Purchase the FCI wire-to-board connector 69168112HLF online today to experience high reliability, excellent retention, and customizable spring force options suitable for industrial, medical, automotive, and data communications. This connector provides secure, gas-tight electrical connections with a rated voltage of 1000V RMS, supporting wire sizes up to 1.52mm. Its durable construction with gold or tin plating guarantees optimal electrical performance and long-term service. Whether for power management or signal integrity, this versatile connector ensures your project’s success with ease of ordering and fast delivery.
Order your FCI Series69168112HLF wire-to-board connector today and ensure reliable electrical connections for your industrial and electronic projects.
