AMPHENOL COMMUNICATIONS SOLUTIONS 69168116HLF Wire-to-Board Connector System
The PV Wire-to-Board Connector System by Amphenol ICC offers a versatile, modular design supporting high demand applications across automotive, industrial, consumer, and medical markets. Featuring durable dual-metal receptacle contacts, beryllium copper springs, polarized housings, and RoHS compliance, it ensures reliable and high-performance electrical connections. Capable of withstanding 1000 mating cycles, it provides customizable insertion and withdrawal forces, gas-tight crimps, and temperature tolerance from -40°C to +105°C, making it ideal for demanding electronic and instrumentation applications requiring high density and mechanical resilience.
AMPHENOL COMMUNICATIONS SOLUTIONS 69168116HLF Wire-to-Board Connector System Specifications:
- Contact Material: Brass body with beryllium copper spring
- Contact Plating: Gold or lead-free pure tin over nickel
- Housing Material: Modified polyphenylene oxide UL94V-0, glass-filled nylon UL94V-0
- Temperature Range: -40°C to +105°C
- Current Rating: 3.0A with 32 AWG wire
- Withstanding Voltage: 1000V RMS
- Insulation Resistance: Wire connector >10000MQ, PCB header >5000MQ
- Contact Resistance: <2mQ
- Durability: 1000 mating cycles
- Maximum Wire Diameter: 152mm
- RoHS Compliant: Yes with 'LF' suffix parts

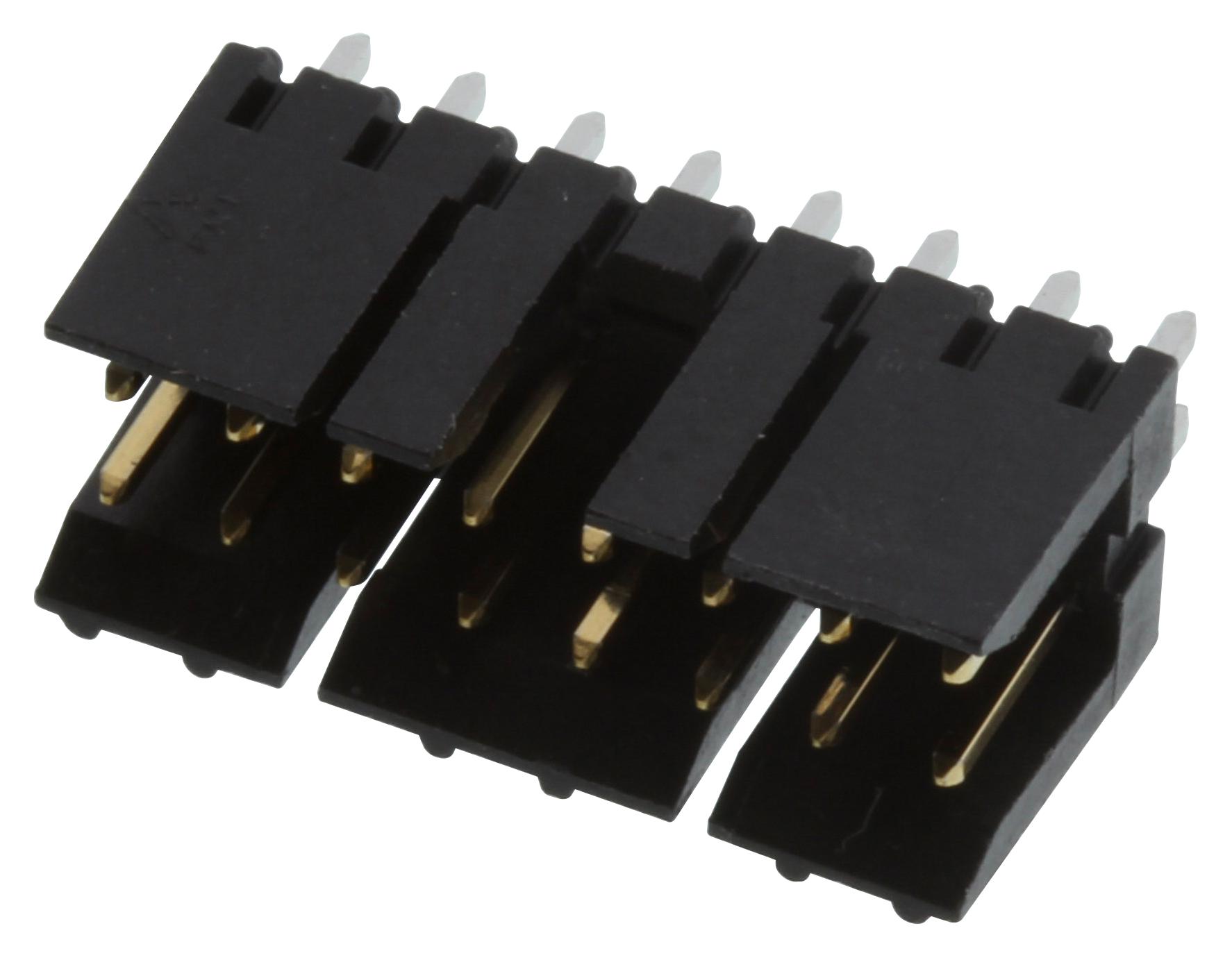

Buy the Buy Amphenol PV Wire-to-Board Connector Part Number 69168116HLF Online
Discover the high-performance PV Wire-to-Board Connector System from Amphenol ICC, offering durability up to 1000 cycles, polarized housings, and versatile options for automotive, industrial, and medical electronics. Designed for demanding environments, this connector features robust brass and beryllium copper contacts with options for gold or tin plating. Its wide temperature range from -40°C to +105°C and compliance with RoHS standards ensure safety and environmental sustainability. Perfect for high-density applications requiring reliable electrical connections and mechanical resilience. Shop online today for fast delivery and competitive pricing.
Buy Amphenol PV 69168116HLF now and experience unmatched reliability, high durability, and flexible customization for demanding electronic applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 69168116HLF?
You can click on the BUY or RFQ button to purchase 69168116HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 69168116HLF?
You can download the 69168116HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 69168116HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
