AMPHENOL COMMUNICATIONS SOLUTIONS 69168110HLF Wire-to-Board Connector System
The PV wire-to-board connector system offers high reliability, durability, and secure mating for industrial, automotive, and medical applications. Featuring dual-metal receptacle contacts and optional polarization, it supports up to 1000 mating cycles. The system includes shrouded headers and MINI-LATCH housings, accommodating wire sizes up to 1.52mm diameter. Designed with RoHS-compliant materials like brass, phosphor bronze, and UL94V-0 housings, it withstands voltages up to 1000V RMS and temperatures from -40°C to +105°C, ensuring robust performance across demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 69168110HLF Wire-to-Board Connector System Specifications:
- Contact Material: Brass and beryllium copper spring
- Contact Plating: Gold or lead-free pure tin over nickel
- Housing Material: Modified polyphenylene oxide UL94V-0, glass-filled nylon UL94V-0
- Current Rating: 3.0A per circuit with 32 AWG wire
- Withstanding Voltage: 1000V RMS
- Insulation Resistance: >10,000MQ (wire connector), >5000MQ (header)
- Contact Resistance: <2mQ
- Un-mating Force: 75g (ultra-high spring), 175g (high spring)
- Mating Force: 450g (high spring), 100g (ultra-high spring)
- Durability: 1000 cycles
- Temperature Range: -40°C to +105°C

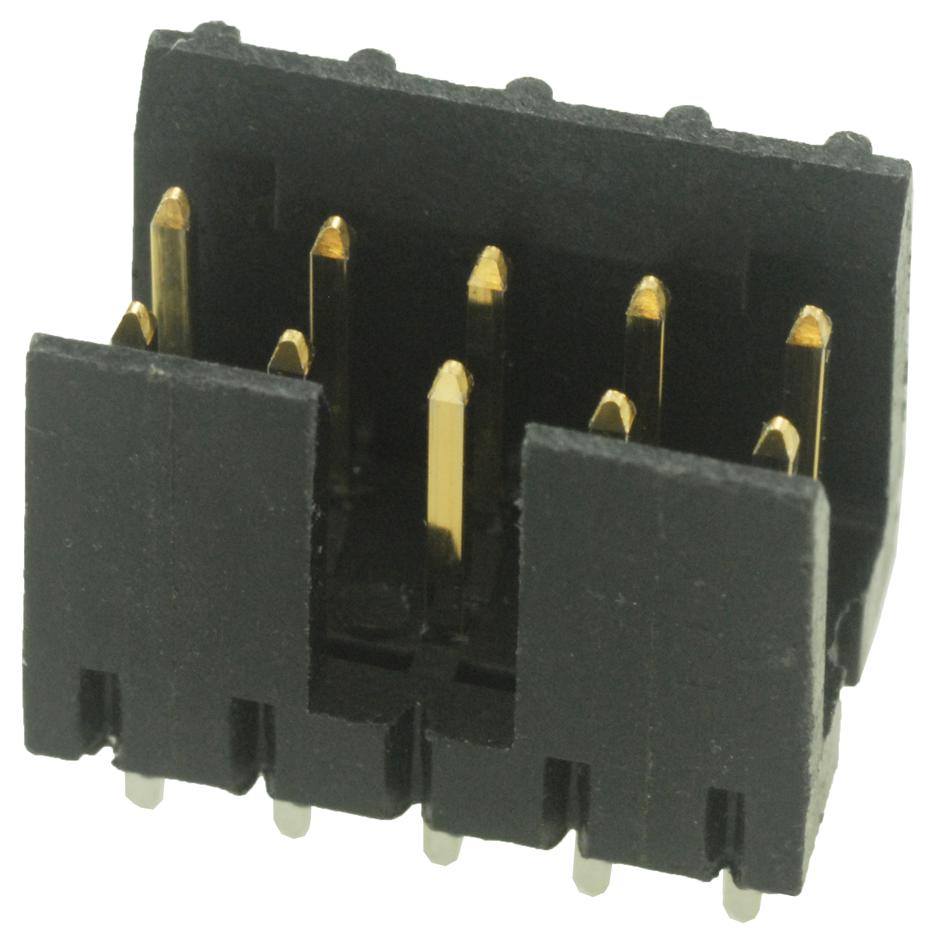

Buy the Amphenol-Communications-Solutions Series PV Wire-to-Board Connector: Part Number 69168110HLF
Enhance your electronic assemblies with the reliable PV wire-to-board connector system from FCI. Featuring dual-metal contacts with high cycle durability, polarization, and RoHS compliance, it ensures secure connections in industrial, automotive, and medical environments. Compatible with wire sizes up to 1.52mm, supporting voltages up to 1000V RMS, and operating across temperatures from -40°C to +105°C. Choose from various configurations with easy-to-use tooling options for quick installation, ensuring your project benefits from robust, long-lasting connections.
Buy FCI PV wire-to-board connectors now and experience unmatched reliability and performance in demanding industrial, automotive, and medical applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 69168110HLF?
You can click on the BUY or RFQ button to purchase 69168110HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 69168110HLF?
You can download the 69168110HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 69168110HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
