AMPHENOL COMMUNICATIONS SOLUTIONS 69190410HLF BergStik II connector

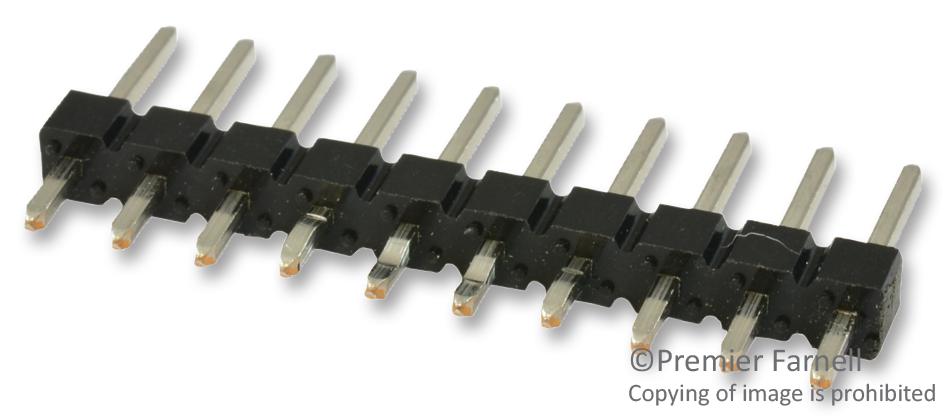

The 69190-410HLF is a 10-pin, single-row BergStik II board-to-board connector featuring tin-plated phosphor bronze contacts. Designed for through-hole vertical connection, it is suitable for industrial applications. Made with high-temperature plastic, it offers reliable electrical performance with a secure, non-mating retention. Ideal for slot or PCB configurations, this connector supports wave, infrared, and vapor phase soldering processes, ensuring durability under rigorous manufacturing conditions. Its versatile design makes it perfect for high-density electronic assemblies requiring robust interconnect solutions.
AMPHENOL COMMUNICATIONS SOLUTIONS 69190410HLF BergStik II connector Specifications:
- Number of Positions: 10
- Contact Material: Tin-plated phosphor bronze
- Pin Plating Codes: Over 50u" / 1.27u" MIN Ni
- Body Material: High-temperature plastic, UL-94V-0 rated
- Color: Black or mineral filled LCP
- Temperature Rating: Up to 260°C for high-temp applications
- Dimensions: Total length approximately 0.450 inches (11.43 mm), tail length 0.120 inches (3.05 mm), mating length 0.230 inches (5.84 mm)
- Contact Retention Force: 2 lbs / 0.9 kg per pin
- Packing: Poly bags, tubes, or reels according to part number
- Solder Process Compatibility: Wave, IR, vapor phase..
Buy the FCI Series BergStik II Connectors: 69190-410HLF
Purchase the BergStik II connector online and enjoy fast delivery for your industrial PCB projects. Designed with tin-plated phosphor bronze contacts and high-temperature plastics, it ensures reliable electrical performance and mechanical stability. Suitable for wave, infrared, and vapor phase soldering, it provides robust interconnectivity in demanding environments. Its compact, 10-pin configuration fits high-density applications and guarantees long-lasting durability. Order now to streamline your manufacturing process with quality assured BergStik II connectors, ideal for industrial control systems and electronic modules.
Get FCI 69190-410HLF today—built for high durability in industrial electronic assemblies.
