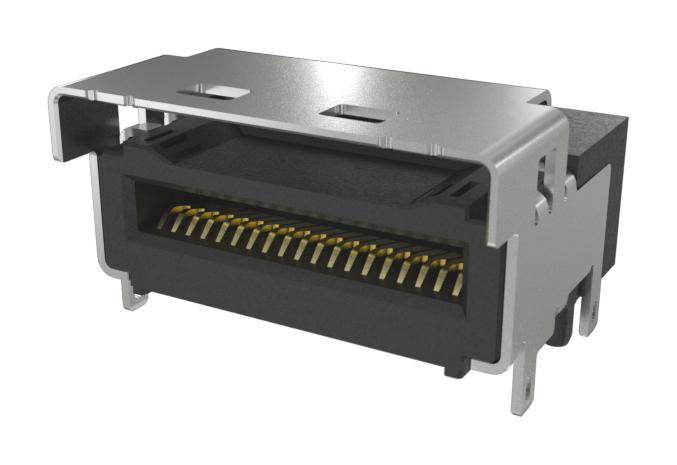

AMPHENOL COMMUNICATIONS SOLUTIONS G97R21312HR Mini Cool Edge Connector
The G97R21312HR is a 0.60mm pitch Mini Cool Edge I/O connector featuring a slim form factor design. It supports high-speed signals up to PCIe® Gen 5, transmitting over 1.0 meter and enabling longer signal paths with excellent SI performance compared to conventional PCB routing. Compatible with cable and card edge applications, it offers a right-angle configuration, high-temperature thermoplastic housing, and durable copper alloy contacts with gold plating. This connector ensures reliable high-speed data transfer for compact, scalable data center, networking, and high-end computing systems, with UL certification for safety and performance.
AMPHENOL COMMUNICATIONS SOLUTIONS G97R21312HR Mini Cool Edge Connector Specifications:
- Pitch: 0.60mm
- Configuration: Vertical and Right Angle
- Signal Speed: Up to 56Gb/s PAM4, PCIe Gen 4/5
- Transmission Distance: Over 1.0 meter
- Material: Copper alloy contacts with gold over nickel finish
- Housing Material: High-temperature thermoplastic (UL 94V-0)
- Contact Resistance: 30mΩ max.
- Dielectric Withstanding Voltage: 300V DC
- Durability: 250 mating cycles
- Mating Force: 0.6N/pin max.
- Unmating Force: 0.06N/pin min.
- Environmental Resistance: EIA-364-31 (Humidity), EIA-364-17 (Temperature life), EIA-364-32 (Thermal shock)
- Certifications: UL Listed
- Pin Count Options: 38, 74, 124, 148, 50, 84, 100
- Packaging: Tape & Reel
Buy the Amphenol G97R21312HR – Reliable High-Speed Connector for Industrial Applications
Order the Mini Cool Edge Connector today and enhance your system with a high-speed, scalable, and reliable interconnect solution. Designed for PCIe® Gen 5 performance, it supports over 1 meter transmission distance, ensuring excellent signal integrity for data centers, high-end computing, and networking applications. Its durable construction with gold-plated contacts and thermoplastic housing guarantees long-term performance and safety. Perfect for cable and card edge use, this connector simplifies system design, reduces costs, and improves repairability. Shop online now for fast delivery and trusted quality.
Buy Amphenol G97R21312HR now and experience unmatched reliability and high-speed performance in compact system designs.
