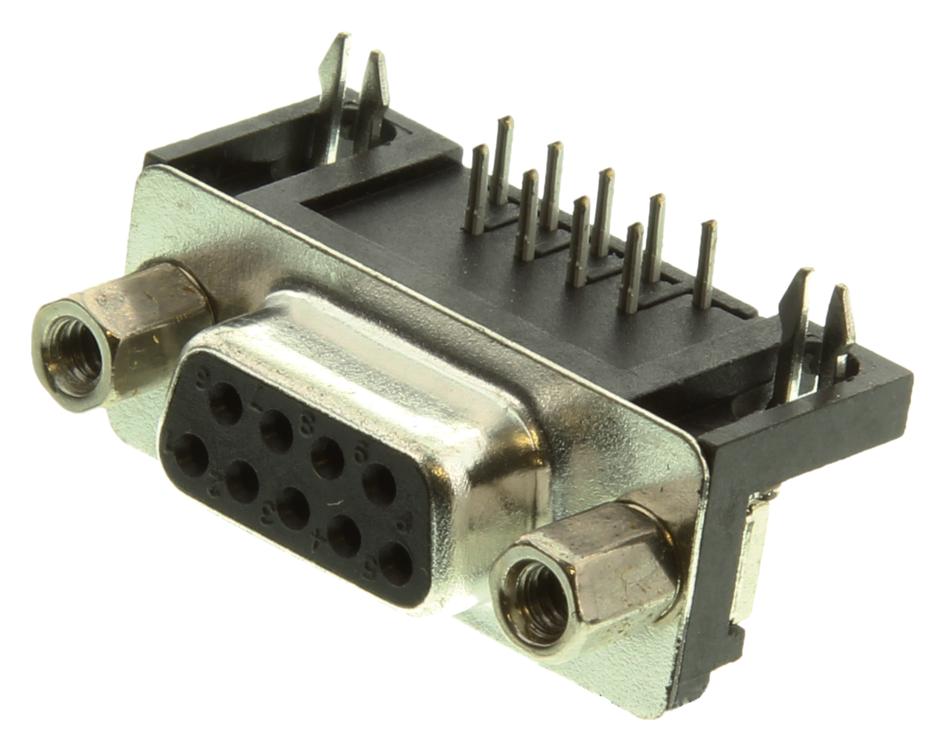

AMPHENOL COMMUNICATIONS SOLUTIONS 6E17C009SAJ220 D-Sub Connector
This is a high-quality, RoHS-compliant D-Sub connector series designed for precise electrical connections in various industrial applications. Featuring a 9 to 37 socket design, right-angle mounting, and plated contacts, it supports current ratings up to 5 amps and withstands voltages of 1000 VAC rms. Constructed with steel shells, tin-plated copper alloy contacts, and nylon insulators, it ensures durability, reliable performance, and resistance to wear and corrosion. Ideal for complex wiring systems requiring robust electrical connections with flexible mounting options.
AMPHENOL COMMUNICATIONS SOLUTIONS 6E17C009SAJ220 D-Sub Connector Specifications:
- Material: Steel shell with tin plating, copper alloy contacts with gold and matte tin plating, nylon insulators
- Current Rating: 5 Amps
- Voltage Rating: 1000 VAC rms
- Operating Temperature: -55°C to +105°C
- Contact Resistance: 15 milliohms max
- Insulation Resistance: 3000 Megohms min
- Dielectric Withstanding Voltage: 1000 VAC rms
- Dimensions: Length varies with model, typical mounting hole diameter 0.120 inches (3.05 mm)
- Plating Options: Gold flash (0.08 microns), gold (0.38 microns), or nickel on engagement area
- Mounting Options: Through hole, threaded hex, right-angle socket, with or without boardlocks
- RoHS compliance and UL flammability rated
Buy the Amphenol Series D-Sub Connector: 6E17C009SAJ220
Order the Amphenol D-Sub Connector, series 6E17C009SAJ220, designed for robust industrial applications. It features a 9 to 37 socket configuration, right-angle mounting, and gold-plated contacts for enhanced electrical performance. Made with steel shells and nylon insulators, these connectors support up to 5 amps and withstand voltages up to 1000 VAC rms. Perfect for complex wiring systems requiring precise, long-lasting connections with flexible mounting options and RoHS compliance. Purchase online today for industry-leading durability and reliable performance.
Get Amphenol 6E17C009SAJ220 today—built for precision, durability, and reliable electrical connections in your industrial systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 6E17C009SAJ220?
You can click on the BUY or RFQ button to purchase 6E17C009SAJ220 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 6E17C009SAJ220?
You can download the 6E17C009SAJ220 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 6E17C009SAJ220?
AMPHENOL COMMUNICATIONS SOLUTIONS
