AMPHENOL COMMUNICATIONS SOLUTIONS 70232116LF Backplane Connector
The Metral® backplane connectors feature high-density vertical headers and right angle receptacles designed for modular, scalable applications across data, industrial, medical, and telecom markets. They support 250 contacts per 100mm in 4- and 5-row configurations, with a 2mm contact pitch. Made with high-temperature thermoplastic housings and copper alloy contacts, these connectors offer versatile termination options including press-fit, solder-to-board, and pin-in-paste. They comply with IEC 61076-4-104 and Telcordia GR-1217-CORE standards, rated for operating temperatures from -55°C to +125°C, delivering reliable electrical performance with 1A current ratings and dielectric withstand voltage of 1000Vrms.
AMPHENOL COMMUNICATIONS SOLUTIONS 70232116LF Backplane Connector Specifications:
- Housing: High temperature thermoplastic; UL94V-0
- Contact Material: Copper Alloy
- Plating: Performance-based plating
- Dielectric Withstanding Voltage: 1000Vrms
- Insulation Resistance: 5000M@ min.
- Current Rating: 1A (all contacts powered)
- Operating Temperature: -55°C to +125°C
- Contact Pitch: 2mm
- Contact Density: 250 contacts per 100mm
- Configuration: 4 and 5-row versions available
- Termination: Press-fit, Solder-to-Board, Pin-in-Paste
- Mating Force: 0.45N max. per pin
- Unmating Force: 0.15N min. per pin
- Standards: IEC 61076-4-104, Telcordia GR-1217-CORE
- Packaging: Tube for press-fit and solder, tape and reel for pin-in-paste
- Applications: Data, industrial, instrumentation, medical, telecom

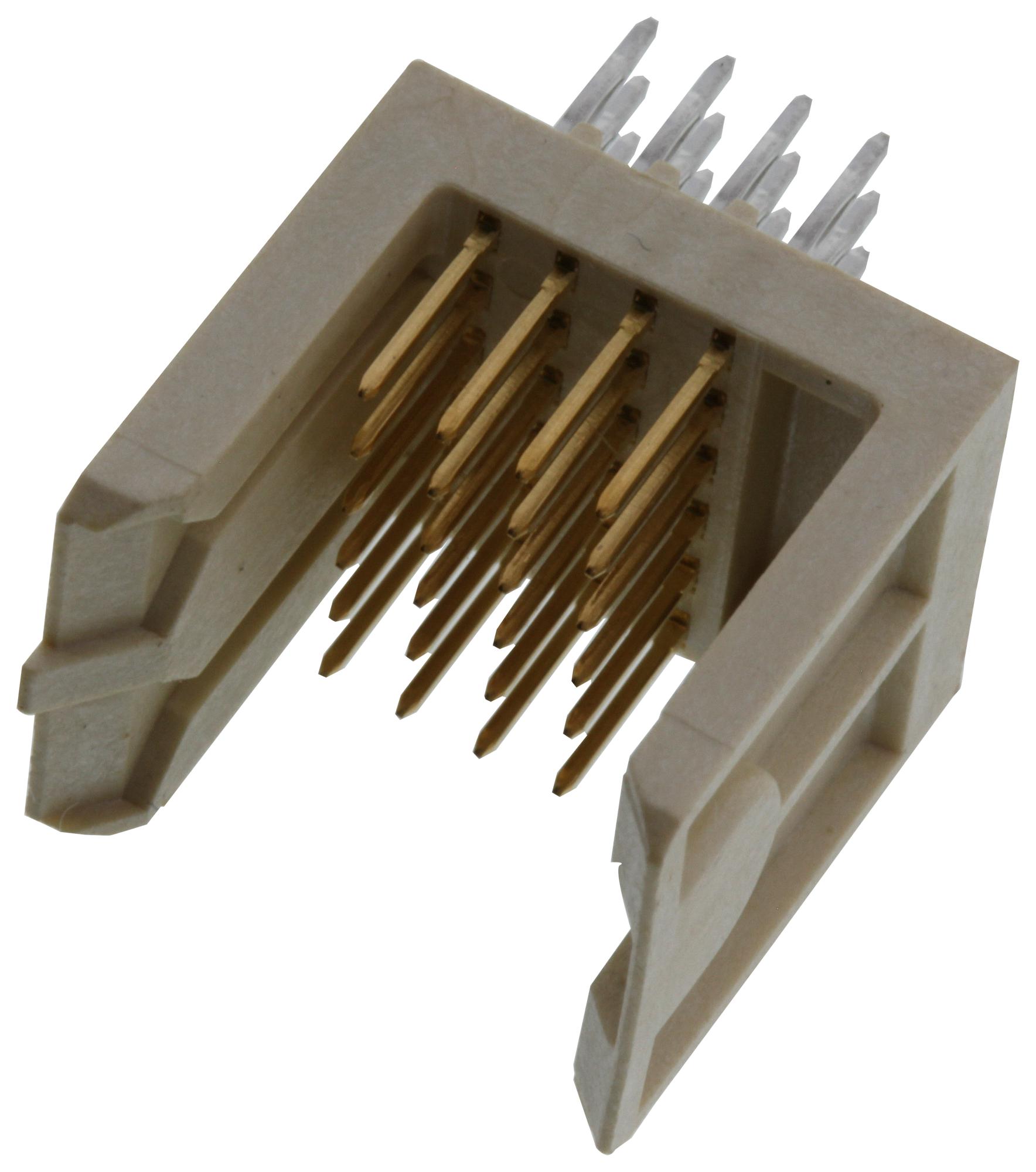

Buy the Buy FCI Backplane Connectors Part Number 70232116LF Online
Secure your electronic projects today by purchasing the FCI backplane connector Series 70232116LF online. Engineered for high-density, reliable connections, this connector supports versatile terminations including press-fit, solder-to-board, and pin-in-paste, making it ideal for industrial, data, medical, and telecom applications. Its robust thermoplastic housing and copper alloy contacts ensure durability and consistent performance across operating temperatures from -55°C to +125°C. Improve your system’s connection integrity and streamline your assembly process by ordering now.
Order your FCI Series 70232116LF backplane connector today and enhance your industrial or telecom projects with reliable high-density connectivity.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 70232116LF?
You can click on the BUY or RFQ button to purchase 70232116LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 70232116LF?
You can download the 70232116LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 70232116LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
